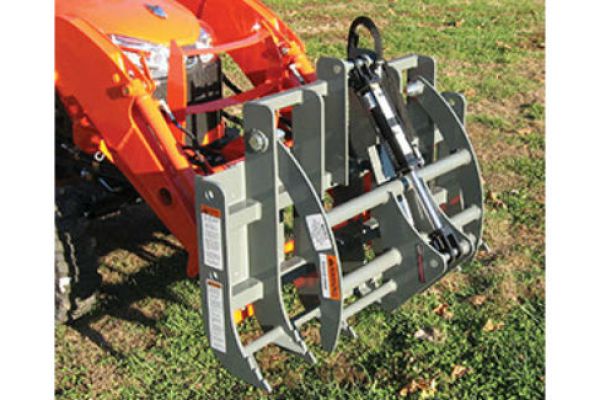

Worksaver CTMG-48S

Double tap to zoom



Features

  • Sized to allow use on sub-compact / compact tractors up to 35-hp.
  • Upper grapple, lower tines have gripping notches to help retain loose materials.
  • Greaseable pivot points for long service life.
  • Shipped less hoses & fittings, allowing the dealer to correctly match the hose length to the tractor / loader.
  • Tractor remote hydraulic ports are required to operate the grapple.

Specifications

Model CTMG-48S
Overall Width (in/mm)  48 / 122
Mount Type Skid Steer
Overall Height Closed (in/mm) 32.75 / 832
Grapple Opening (in/mm) 33 / 838
Upper Grapple Width (in/mm) 31 / 787
Lower Grapple Width (in/mm) 48 / 1219
Tine Spacing (in/mm) 7.5 / 191
Number of Tines/Grapples (lower/upper) 7 / 4
Reinforcing Tubes Between Lower Tines Yes
Number of Hydraulic Cylinders 1
Cylinder Size 2" x 8"
Weight (lbs/kg) 320 / 145
Product No. 811850
