Call UsWorksaver JDPF-H48048
Pallet Forks JDPF-H48048
Overview:

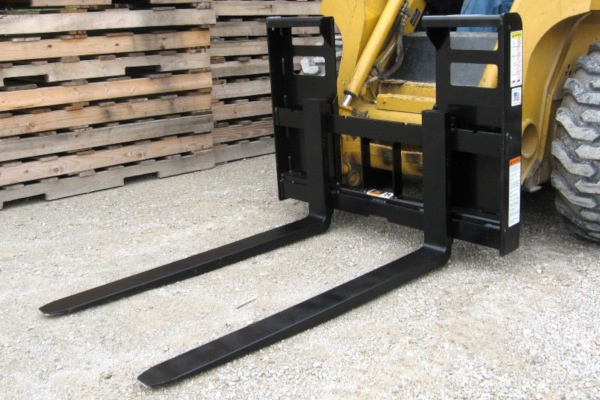

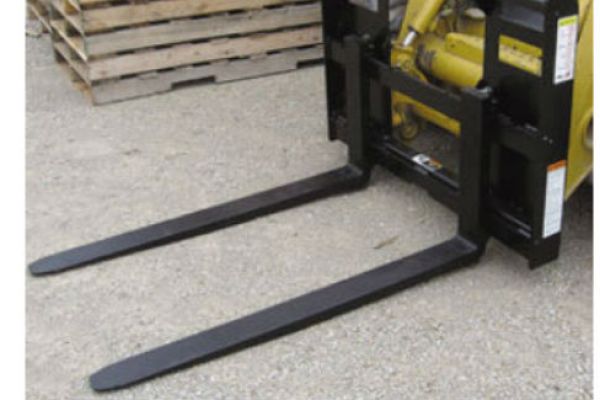

John Deere Integrated Frame Pallet Forks
Designed for skid steer or tractor front loaders, our standard pallet forks have rated capacities from 4,000 lbs. to 5,500 lbs. All models feature solid steel alloy forks for long life, with spring loaded latches for easy adjustment spacing.
Features
- Skid steer pallet forks (4,000 lbs.) are offered with a one piece backstop or a step through design for easy cab access and excellent visibility.
- Skid steer models mount with the “Universal” quick-attach mounting system.
- Premium forks include spring loaded latches for easy adjustment spacing.
- Models available with integrated brackets for skid steers, John Deere 400/500/600/700 series loaders, and loaders with Euro/Global attaching method.
- Pallet forks for John Deere H480 loader with Global Series II tool carrier.
- Optional interfacing quick-attach brackets are available for the model PF-448 for most popular loader models.
- Machined rails allow ease of fork spacing adjustment.
Specifications
| Model | JDPF-H48048 |
| Equipment Used On | JD Front Loader |
| Capacity (lbs/kg) | 7,500 / 3,402 |
| Frame Construction | Welded Steel |
| Mounting | Global Series II |
| Fork Spacing (in/mm) | 6-56 / 152-1422 |
| Fork Carrier | Beveled Notched Rail |
| Forks | 1.75" x 4.75" |
| Fork Length (in/mm) | 48 / 1219 |
| Weight (lbs/kg) | 785 / 356 |
| Product No. | 834130 |
| *Optional interfacing quick attach brackets available for most popular loaders. | |
