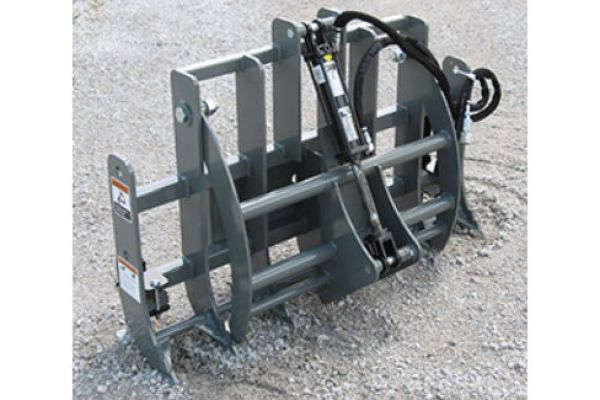

Mini Skid Steer/Compact Tool Carrier Grapple MGB/G-48
Overview:
This tool consistently delivers high performance while offering the owner a great return on investment. Model MGU-48 is designed to fit any unit with the “Universal Mini Mount” (Toro-Dingo®, Boxer®, Ditch Witch®, Ramrod, etc.). Model MGB/G-48 is designed to fit the Bobcat® MT-Series as well as the Gehl 1640E. Overall u... + Read More
Features
- Single upper grapple provides clamping force to hold material securely.
- Mainframe design allows brush and other materials to be picked up while leaving the dirt.
- Good forward visibility for easy control in close quarters for increased productivity.
- Hoses and couplers are standard equipment.
Specifications
| Model | MGB/G-48 |
| Overall Width (in/mm) | 48 / 122 |
| Overall Height Closed (in/mm) | 32.75 / 832 |
| Upper Grapple Width (in/mm) | 31 / 787 |
| Tine Spacing (in/mm) | 7.5 / 191 |
| Reinforcing Tubes Between Lower Tines | Yes |
| Number of Hydraulic Cylinders | 1 |
| Mounting Type | Bobcat MT-Series |
| Weight (lbs./kg.) | 310 / 141 |
| Product No. | 811740 |
