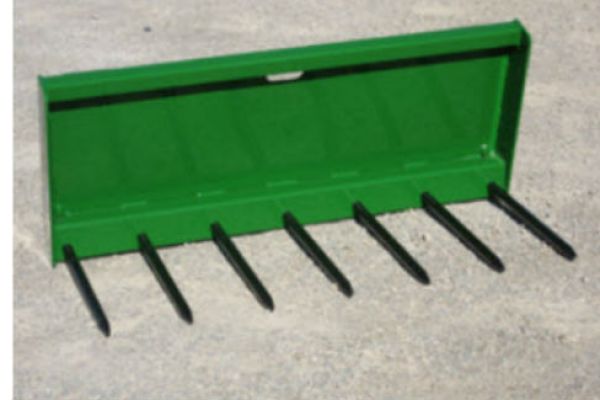

Worksaver M/S-72JD

Double tap to zoom



Features

  • Designed for picking up manure, matted straw or other loose materials.
  • Produces cleaner stalls with less physical effort.
  • Excellent for handling silage, upper grapple helps secures load during transport improving productivity.
  • 66" & 72" models feature forged cranked tines.
  • 50" & 60" models use straight tines of 1-1/8" alloy steel.
  • Units with upper grapple and skid steer mount are supplied with hoses and flat-face couplers for ease of installation.
  • Models with upper grapple have greaseable pivot points for long life.
  • Cylinder pivot points utilize replaceable harden bushing to reduce wear.
  • Models with upper grapples can be used for picking up tree limbs increasing their versatility.
  • Mount types: John Deere, “Universal” Skid Steer, and models to accept bolt-on front loader brackets.

Specifications

Model M/S-72JD
Overall Width (in/mm) 72 / 1829
Overall Depth (in/mm) 31 / 787
Overall Height (in/mm) 21.5 / 546
Upper Grapple No
Upper Grapple Width (in/mm) N/A
Usable Tine Length (in/mm) 27 / 686
Number of Tines 10
Tine Type Forged Cranked Tines
Tine Spacing (in/mm) 7.5 / 190
Mounting Type JD 400 / 500
Weight (lbs/kg) 268 / 122
Product No. 812345
