Worksaver M/S-66JD

Worksaver M/S-66JD for sale at Coastal Tractor, California

Double tap to zoom

Worksaver M/S-66JD for sale at Coastal Tractor, California

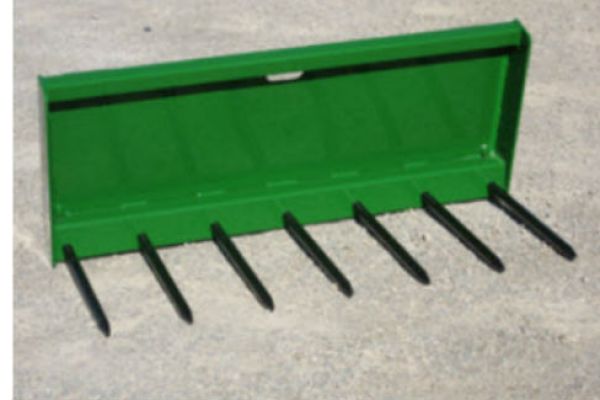

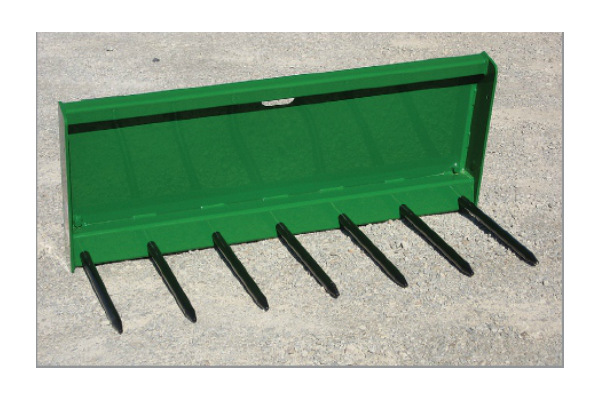

Manure Forks M/S-66JD

Manure / Silage / Debris Forks Designed for use on John Deere Tractor Front Loaders

Models interface with John Deere 300/400/500 Series loaders with hook & pin quick attach



Features

  • Designed for picking up manure, matted straw or other loose materials.
  • Produces cleaner stalls with less physical effort.
  • 66" & 72" models feature forged cranked tines.
  • 50" & 60" models use straight tines of 1-1/8" alloy steel.
  • Mount types: “universal” skid steer and John Deere hook & pin.

Specs

Model M/S-66JD
Overall Width (in/mm) 66 / 1676
Overall Depth (in/mm) 31 / 787
Overall Height (in/mm) 21.5 / 546
Upper Grapple No
Upper Grapple Width (in/mm) N/A
Usable Tine Length (in/mm) 27 / 686
Number of Tines 9
Tine Type Forged Cranked Tines
Tine Spacing (in/mm) 7.5 / 190
Mounting Type JD 400 / 500
Weight (lbs/kg) 245 / 111
Product No. 812410
