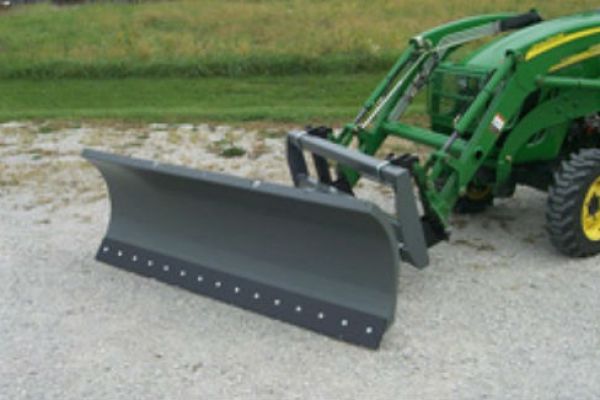

21-Series Snow Blade 5’ and 6’ SBJD-2172

Ideal for residential or commercial snow removal. Use on driveways, parking lots, or other large areas.
7.5-ft. & 9-ft. models feature 5° lateral oscillation to allow blade to follow ground contours.
Two trip springs for controlled break over in snow.
Reinforced 21" or 27" high 10-gauge moldboards provide long service life.
3/8" x 6" cutting edge of 1044 steel.
Blade locks for light grading of loose dirt or gravel.
Step-through design allows for easy access to skid steer seat.
Quick hook up on skid steers or front loaders equipped with "Universal" mounting plate.
Blade angles right or left.
Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
Select models integrate either the Euro/Global or John Deere 400/500 series mounting for easier hook up.
Two bucket clamp-on models for compact tractors.
SBFL models can be paired with optional brackets for most tractor loaders.

Model	SBJD-2172
Overall width (in/cm)	72 / 183
Overall height (in/cm)	21 / 53
Moldboard Thickness	10-gauge
Cutting edge (in/mm) 3/8" x 6" / 9.525 x 152.4	Standard
Extension trip springs	2
Manual angle positions	5
Width @ Full angle	62 / 157
Tractor Loader Mount	200 / 400 JD
Skid Steer Mount	N/A
Adjustable Skid Shoes	Standard
Horse Power Rating	<45 HP
Weight (lb/kg)	373 / 169
Hydraulic Angle Kit	Optional
Skid Steer Angle Hydraulic Kit	Optional
Crossover Rel. Valve	Optional
Optional Top Deflector	360223
Opt. Sight Indicator	360235
Product Number	360255
Parts Lists	SBJD-2172
