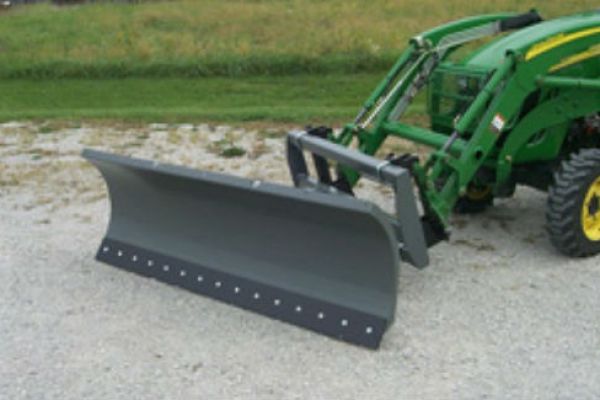

Worksaver SBFL-2172

Double tap to zoom



Features

  • Ideal for residential or commercial snow removal. Use on driveways, parking lots, or other large areas.
  • 7.5-ft. & 9-ft. models feature 5° lateral oscillation to allow blade to follow ground contours.
  • Two trip springs for controlled break over in snow.
  • Clamp-on blade for compact tractors.
  • Reinforced 21" or 27" high 10-guage moldboards provide long service life.
  • 3/8" x 6" cutting edge of 1044 steel.
  • Blade locks for grading loose dirt or gravel.
  • Step-through design allows for easy access to skid steer seat.
  • Quick hook up on skid steers or front loaders equipped with "Universal" mounting plate.
  • Blade angles right or left.
  • Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
  • Select models integrate either the Euro/Global or John Deere 400/500 series mounting for easier hook up.
  • Two bucket clamp-on models for compact tractors.
  • SBFL models can be paired with optional brackets for most tractor loaders.

Specifications

 Model SBFL-2172
Overall width (in/cm) 72 / 183
Overall height (in/cm) 21 / 53
Moldboard Thickness 10-gauge
Cutting edge (in/mm)
3/8" x 6" / 9.525 x 152.4
Standard
Extension trip springs 2
Manual angle positions 5
Width @ Full angle 62 / 157
Tractor Loader Mount *Brackets Req.
Skid Steer Mount N/A
Adjustable Skid Shoes Standard
Horse Power Rating <45 HP
Weight (lb/kg) 360 / 163
Hydraulic Angle Kit Optional
Skid Steer Angle Hydraulic Kit N/A
Crossover Rel. Valve Optional
Optional Top Deflector 360223
Opt. Sight Indicator 360235
Product Number 360160
Parts Lists SBC-2172 N/A
