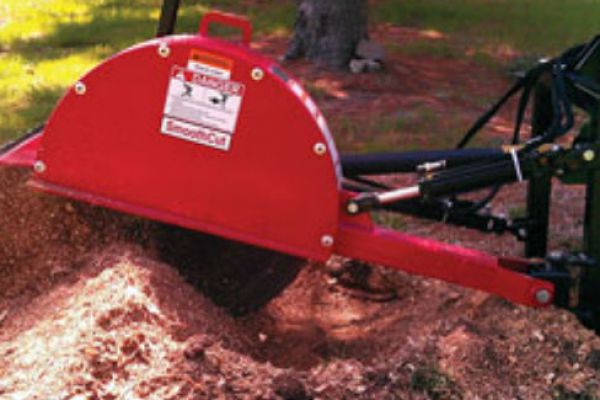

Worksaver SG-26A

Double tap to zoom



Features

  • Maneuverable - goes anywhere a tractor can; gets into tight places.
  • Increased productivity via it's unique cutting wheel design.
  • Cutting wheel design provides a smoother cutting action.
  • Easy to operate - hydraulic controls allow easy operation from the tractor seat using existing tractor hydraulic controls.
  • Durable carbide-tipped cutting teeth are economical and easy to replace.
  • Harden bushings used in major pivot points for increased reliability.
  • Grease zerks provided at major pivot points for extended service life.
  • SureFoot stabilizer bar provides secure footing during operation.
  • Rubber deflector helps control chips and debris during grinding.
  • Parking stand for easy storage.
  • Two pair of remote hydraulic outlets are required on the tractor to operate the stump grinder.
  • SG-26 designed for tractors 22 -50 PTO HP; SG-36 designed for tractors 45-100 PTO HP.
  • Standard pressure relief valve for even control of cutting feed rate.

Specifications

 Model SG-26A
Hitch Cat. I
Overall Estimated Length (in/cm) 75 / 191
Drive System Protection Slip Clutch
Gearbox Rating/Ratio 60 HP / 1:1.5
Cutting Wheel Construction Welded 2-piece Laminated Steel
Cutting Wheel Thickness (in/cm) 3/4 / 1.91
Cutting Wheel Diameter (in/cm) 26 /66
Cutting Wheel Speed 810 RPM
@ 540 PTO RPM 5,515 ft. / min.
Number of Teeth 33
Cutting Teeth Construction Carbide Steel Bolt-In
Cut Height Above Ground (in/cm) 18 / 46
Cut Depth Below Ground (in/cm) 10 / 25
Maximum Horizontal Cut (in/cm) 28 / 71
Swing Arc 45°
Minimum Power / Flow Required 22-PTO HP
Maximum Power / Flow 50-PTO HP
Driveline PTO / Series 5
PTO Speed 540 RPM
Weight (lbs/kg) 660 / 299
Product No. 812200
