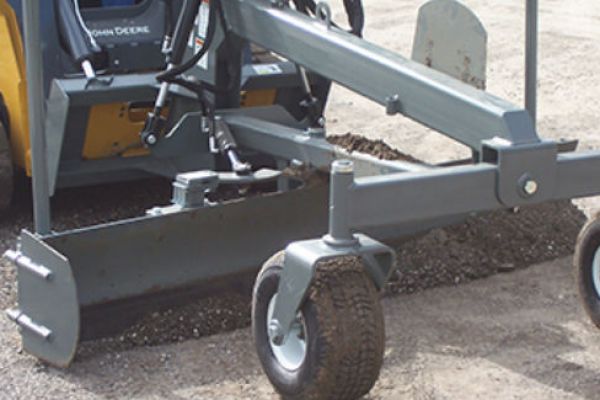

Worksaver SSGB-8B

Double tap to zoom



Features

  • To help prevent damage, the moldboard is shear pin protected.
  • Unit comes complete with 1/2” “connect under pressure” flat-faced hydraulic couplers and a reversible beveled cutting edge for long life.
  • Optional laser system will maintain grade to tight tolerances.
  • Optional End Plate Kit (Pair, #811980) and Laser Pole Kit (Pair, #812110) are also available.

Specifications

Model SSGB-8B
Overall Height (in/cm) 46-1/2 / 118.1
Overall Length (in/cm) 98 / 248.9
Overall Width (in/cm) 95-1/2 / 242.6
Weight (lbs/kg) 1195 / 542
Mount Type Universal Skid Steer
Hydraulic Blade Adjustments Tilt / Angle / Height
Moldboard Width (in/cm) 95-1/2 / 242.6
Moldboard Height (in/cm) 15 / 381 w/Cutting Edge
Moldboard Width, Fully Angled (in/cm) 85 / 215.9
Moldboard Rotation Left & Right 25 Degrees
Moldboard Tilt Up or Down 25 Degrees
Reversible Moldboard Cutting Edge (in/cm) 1/2 x 6 / 33 x 386 Double Bevel
Moldboard Shear Pin Protection (in/cm) 5/16 / .8166 Diameter Shear Pin (Soft)
3 -Hydraulic Cylinders (in/cm) PSI/bar 2 / 5 Bore x 12 / 30 Stroke 3500 / 241
Flat-Faced Couplers Included (in/cm) 1/2 / 13 Body - Connect Under Pressure
Grader Control Valve Electric Solenoid Operated
In-Cab Remote Control Standard
Recommended Min. Skid Steer HP 45 HP (34 kw)
Wheel Bearings Greaseable Tapered Roller
Tire Size (in/cm) 18-1/2 x 8-1/2 x 8 / 47 x 21.6 x 20.3
Product No. 811940
