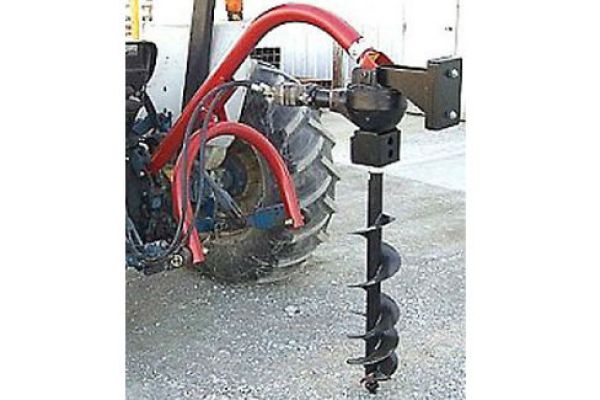

Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger 624HC
Increased performance is offered in the models 614HC & 624HC 3-pt mounted hydraulic post hole diggers.
Features
Increased performance is offered in the models 614HC & 624HC hydraulic 3-pt post hole diggers. Designed for Cat. I/II (7/8” Pins) three point hitches, they offer all the features of our 3-pt diggers with power provided by a field proven hydraulic drive motor and gearbox combination for a smooth transfer of power to the auger. Counter weights assure the digger maintains its vertical position for true-vertical holes.
Specs
| Model | 624HC |
| Boom Size (O.D.) | 3-1/2” |
| Yoke Size | 3” |
| Boom Positions | 3 |
| Mount Type | Cat. I/II |
| Gearbox Ratio | 3.18:1 |
| Gearbox Output Shaft | 2” |
| Gearbox Bearings | Tapered Roller |
| Gearbox Seals | Double lip, spring loader |
| Drive Type | Hydraulic |
| Gearbox Ltd. Warranty | 5-yrs. |
| Hyd. Requirement | 10-20 GPM |
| Hyd. Pressure psi | 1500-3000 |
| Optional Down Force Kit | Yes, DFK-70 |
| Auger Sizes | 6” thru 24” |
| Auger Length | 42” |
| Auger Type | STD, HDSF, HDDF |
| Auger Point - Bolt-in | Fish Tail |
| 12" Auger Ext. | Opt. (170705) |
| Parking Stand Kit | Opt. (102165) |
| Weight (lbs.) | 182 |
| Product Number | 702095 |
