Worksaver HPD-22Q MSS

Worksaver HPD-22Q MSS for sale at Coastal Tractor, California

Double tap to zoom

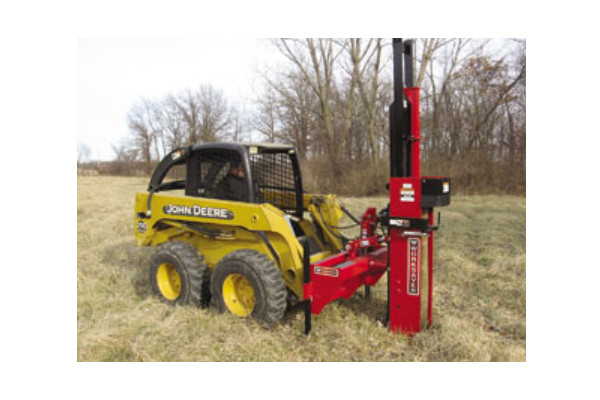

Worksaver HPD-22Q MSS for sale at Coastal Tractor, California

HPD-16/22Q MSS/HSS, HPD-26Q HSS Skid Steer Mounted, Hydraulic Post Drivers HPD-22Q MSS

Want greater multi-task performance from your skid loader? Then connect it to a hydraulic skid steer mounted post driver. The HPD-16 & HPD-22Q are offered either with manual crank adjustment (MSS) or hydraulic adjustment (HSS) for quicker productivity. The model HPD-26Q HSS is all hydraulic adjust with 3” x 6” cylinder... + Read More



Features

Sorry, currently there are no features but check back with us later.

Specs

Model HPD-22Q MSS
Max. Post Size 8-3/4” x 10’
Impact at Full Stroke 80,000 lbs.
Impact at Half Stroke 40,000 lbs.
Mount Type Skid Steer
Tilt Adj. Front/Back 10° each way
Tilt Adj. Side/Side 17° each way
Manual Adjust Yes
Hydraulic Adjust No
Adj. Cylinders/Size N/A
Stabilizer Legs Standard
Big Foot N/A
Slide Blocks Material UHMW*
Spring Post Holder Standard
Min. Tractor Size N/A
Rear Hitch Category N/A
Min. Hydraulic Req. 6-8 GPM
QuickChange Rod Seal Yes
Q-springs Yes
Valve(s) Sgl. Spool
Hoses less couplers Standard
Offset (to left of tractor Ctr.) N/A
Self Contained Unit N/A
Reservoir Capacity N/A
Pump Type N/A
Pressure Relief Setting N/A
Weight (lbs.) 828
Product Number 815315
