Apply NowWorksaver HPD-22Q-HFL

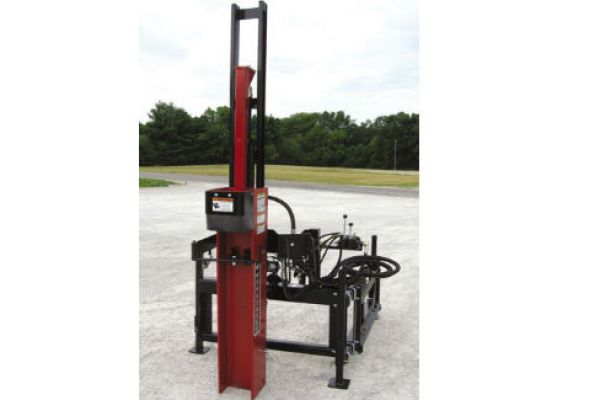

HPD-16/22Q HFL Front Loader Mounted, Hydraulic Post Drivers HPD-22Q-HFL
Front loader mounted hydraulic adjust post drivers offer increased visibility and maneuverability for improved access in hard-to-reach areas. Available as either a HPD-16 or HPD- 22Q these drivers can be position to the center or side of the loader for easier fence building. Choose from brackets with pin type mounting ... + Read More
Features
Specs
| Model | HPD-22Q-HFL |
| Max. Post Size | 8-3/4” x 10’ |
| Impact at Full Stroke | 80,000 lbs. |
| Impact at Half Stroke | 40,000 lbs. |
| Mount Type | Frt. Loader |
| Tilt Adj. Front/Back | 17° each way |
| Tilt Adj. Side/Side | 20° each way |
| Manual Adjust | No |
| Hydraulic Adjust | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” |
| Stabilizer Legs | Standard |
| Big Foot | N/A |
| Slide Blocks Material | UHMW* |
| Spring Post Holder | Standard |
| Min. Tractor Size | 40-45 hp |
| Rear Hitch Category | N/A |
| Min. Hydraulic Req. | 6-8 GPM |
| QuickChange Rod Seal | Yes |
| Q-springs | Yes |
| Valve(s) | Sgl./Dbl. Spool |
| Hoses less couplers | Standard |
| Offset (to left of tractor Ctr.) | N/A |
| Self Contained Unit | N/A |
| Reservoir Capacity | N/A |
| Pump Type | N/A |
| Pressure Relief Setting | N/A |
| Weight (lbs.) | 1275 |
| Product Number | 815310 |
