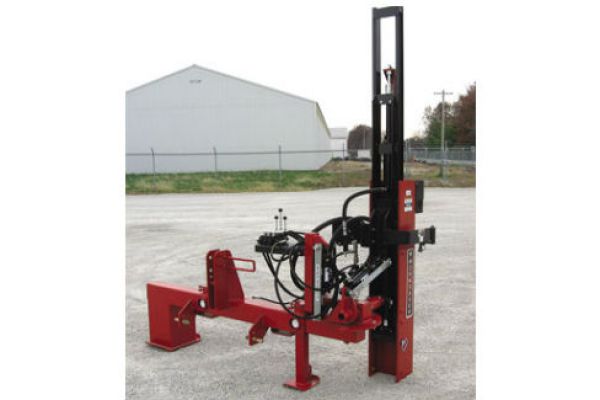

HPD-16/22Q/26Q SWO Offset 3-pt. Hydraulic Post Drivers HPD-16 SWO
Driving post along existing fence lines, ditch banks, or corners is easily done with a SWO model. Hydraulic side shift extends the unit 24” to the left permitting the post driver to reach up to 46” left of the tractors center point. Heavy-duty 3-angle swivel mount pivots the driver 45°, 90° or rear facing for increased... + Read More
Features
Specs
| Model | HPD-16 SWO |
| Max. Post Size | 5” x 8’ |
| Impact at Full Stroke | 32,000 lbs. |
| Impact at Half Stroke | 16,000 lbs. |
| Mount Type | 3-pt. Cat I/II |
| Tilt Adj. Front/Back | 17° each way |
| Tilt Adj. Side/Side | 20° each way |
| Manual Adjust | No |
| Hydraulic Adjust | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” (1) 2” x 24” |
| Stabilizer Legs | Standard |
| Big Foot | N/A |
| Slide Blocks Material | Nyrim |
| Spring Post Holder | Standard |
| Min. Tractor Size | 40-45 hp |
| Rear Hitch Category | Cat. I or II |
| Min. Hydraulic Req. | 3-4 GPM |
| QuickChange Rod Seal | Yes |
| Q-springs | N/A |
| Valve(s) | Sgl./Trpl. Spool |
| Hoses less couplers | Standard |
| Offset (to left of tractor Ctr.) | 46” Min |
| Self Contained Unit | N/A |
| Reservoir Capacity | N/A |
| Pump Type | N/A |
| Pressure Relief Setting | N/A |
| Weight (lbs.) | 1683 |
| Product Number | 814855 |
