Apply NowWorksaver HPD-22Q HSS/P

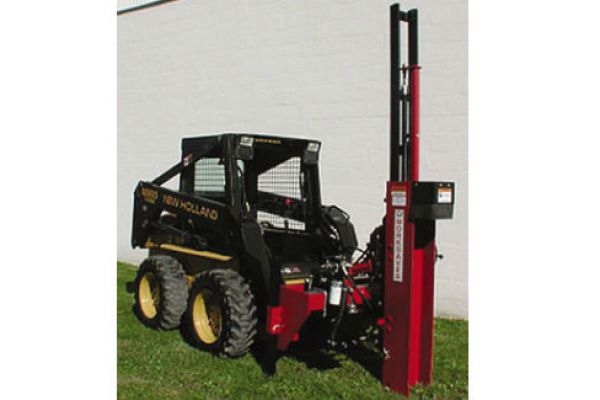

HPD-16/22Q/26Q HSS/P Self-contained, Skid Steer Mounted, Hydraulic Post Drivers HPD-22Q HSS/P
Skid steer, self-contained hydraulic post drivers save time by simplifying driver installation and removal. Feature their own hydraulic pump, motor, reservoir.
Features
Save time by simplifying driver installation and removal with a self-contained hydraulic post driver. These skid steer post drivers feature their own hydraulic pump, motor and reservoir. No special return line fittings are required with these units. Gear pump is used to move the oil within the self-contained system providing reliable operation. Note: Some skid steer models require the Self-contained post driver – check with your dealer.
Specs
| Model | HPD-22Q HSS/P |
| Max. Post Size | 8-3/4” x 10’ |
| Impact at Full Stroke | 80,000 lbs. |
| Impact at Half Stroke | 40,000 lbs. |
| Mount Type | Skid Steer |
| Tilt Adj. Front/Back | 17° each way |
| Tilt Adj. Side/Side | 20° each way |
| Manual Adjust | No |
| Hydraulic Adjust | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” |
| Stabilizer Legs | Standard |
| Big Foot | Yes |
| Slide Blocks Material | UHMW* |
| Spring Post Holder | Standard |
| Min. Hydraulic Req. | 10 GPM |
| QuickChange Rod Seal | Yes |
| Q-springs | Yes |
| Valve(s) | Sgl./Dbl. Spool |
| Hoses less couplers | Standard |
| Self Contained Unit | Yes |
| Reservoir Capacity | 5 Gallons |
| Pump Type | Gear |
| Pressure Relief Setting | 2000 psi |
| Weight (lbs.) | 1385 |
| Product Number | 815325 |
