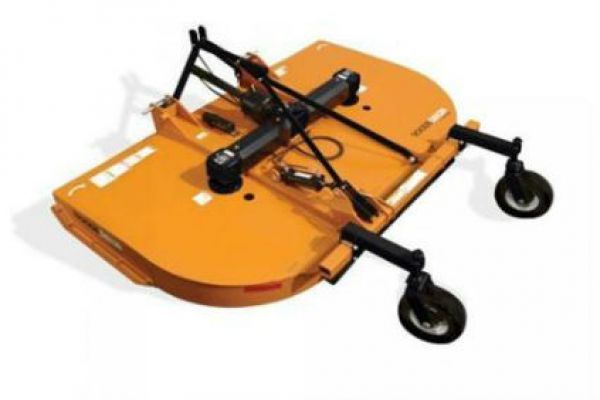

Multi-Spindle Cutters MDS120 Mounted
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 120-inch, 3-point Mounted Dual-Spindle Cutter
- Minimum Tractor HP: 60 hp
- Cutting capacity up to 1.5-inches
- Smooth, sloped top deck for easy water and debris shedding, reduces rust and corrosion
- Variable wheel spacing
Specifications
| PTO Horsepower | 60 hp |
| Hitch category / type | - |
| Cutting width | 120" |
| Cutting height | 2" - 12" |
| Cutting capacity | 1.5" |
| Gearbox horsepower rating | 120 hp splitter; 90 hp spindle |
| Gearbox warranty | 6 years |
| Blade tip speed (540 RPM) | 16,700 fpm |
| Deck side depth | 11" |
| Approximate weight | 2,100 lbs |
| Blade dimensions | .5" x 4" |
| Side skirt thickness | 7 gauge |
| Wheel selection | laminated, used aircraft, foam-filled aircraft, or 15" pneumatic |
| Optional dual wheels - pull-type | yes |
| Quick-hitch compatible | yes |
