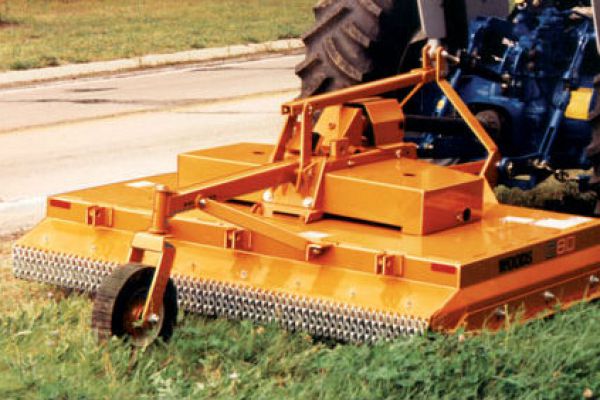

Woods MD80 Mounted

Double tap to zoom



Features

  • 80-inch, 3-point Mounted Dual-Spindle Cutter
  • Minimum Tractor HP: 40 hp
  • Cutting capacity up to 1-inch
  • Seven gauge frame and sides, 11 gauge deck
  • Welded box-type construction for rugged dependability
  • Custom designed gearbox with forged gears, heat treated for extra strength
  • Blade spindles with lubricated, adjustable tapered roller-bearings for long life

Specifications

PTO Horsepower 25 hp
Hitch category / type pull-type, Cat 1 / cantilevered
Cutting width 80"
Cutting height 2" - 12"
Cutting capacity 1"
Gearbox horsepower rating 60 hp
Gearbox warranty 1 year
Blade tip speed (540 RPM) 13,920 fpm
Deck side depth 9.4"
Approximate weight 1,200 lbs
Blade dimensions .38" x 3"
Side skirt thickness 7 gauge
Wheel selection laminated, used aircraft, foam-filled aircraft, or 15" pneumatic
Optional dual wheels - pull-type no
Quick-hitch compatible -
