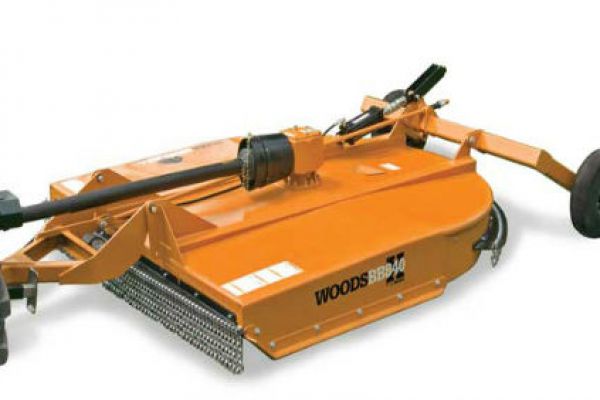

Woods BB840X-P

Double tap to zoom



Features

  • 84-inch, Pull-Type Single-Spindle Cutter
  • Tractor HP range: 40-120 hp
  • Cutting capacity up to 3-inches
  • Standard dual tail wheels with hydraulic height control
  • Standard adjustable baffles for superior material distribution
  • Exclusive quick-change pins enable speedy blade changes in the field

Specifications

Cutting width 84"
Transport width 91.5"
Overall length 174"
Cutting height 2" - 12"
Approximate weight 1,868 lbs.
PTO Horsepower 40 - 120 hp
Tractor PTO speed 540 rpm
Hitch pull-type
Quick hitch compatible yes
Driveline protection slip clutch
Gearbox output shaft diameter 2.38"
Gearbox horsepower 200 hp
Blades (2) .5" x 4"
Blade composition heat-treated alloy steel
Cutting capacity 3"
Blade carrier round stump jumper
Blade mount system quick-change blade pins
Blade tip speed 16,000 fpm
Blade pin diameter 1.5"
Frame & deck support 3" x 4" full length structural beams
Skid-shoes heavy-duty replaceable
Rear bumper 2" tubular
Cutter deck thickness 10 gauge
Deck side depth 12.6"
Side frame thickness 1/4"
Tail wheel standard with hydraulic height control
Tail wheel mount 4-point
