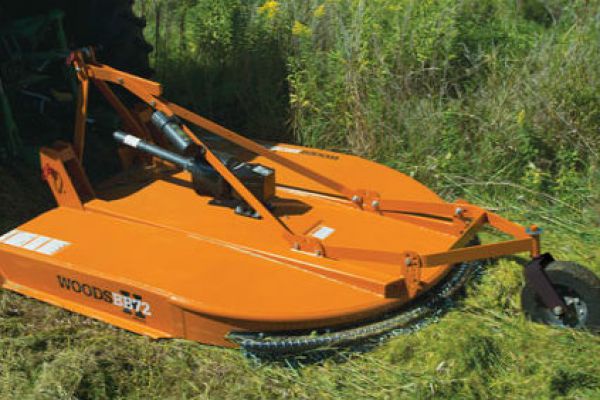

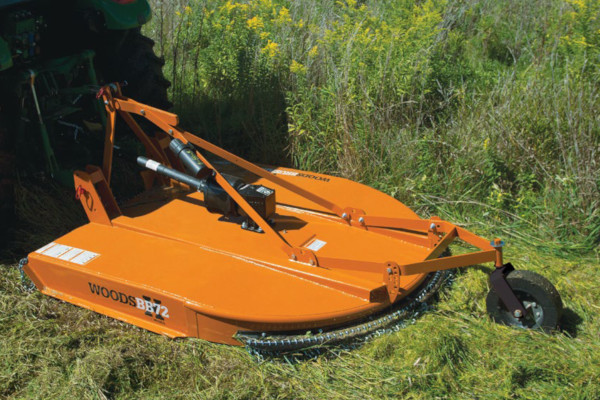

Woods BB72X

Double tap to zoom



Features

  • 72-inch Single-Spindle Cutter
  • Three-point hitch: Cat 1
  • Tractor HP range: 30-65 hp
  • Cutting capacity up to 1.5-inches
  • Exclusive quick-change pins enable speedy blade changes in the field

Specifications

Cutting width 72"
Transport width 77.5"
Overall length 116"
Deck length 84"
Cutting height 1" - 9"
Approximate weight 804 lbs
PTO Horsepower 30 - 65 hp
Tractor PTO speed 540 rpm
Hitch Cat 1/Clevis
Quick hitch compatible yes
Safety Shielded Driveline Cat 3
Driveline protection shear pin or slip clutch
Gearbox output shaft diameter 1.57"
Gearbox horsepower 75
Blades (thickness x width) (2) .5" x 3"
Blade composition heat-treated alloy steel
Blade carrier oval stump jumper
Blade mount system/pin diameter quick-change blade pins / 1.5"
Number of spindles 1
Blade speed 792 rpm
Blade tip speed 14,963 fpm
Blade rotation CCW
Deck side depth 9.5"
Tail wheel - laminated tire 4" X 16"
Tail wheel mount 4-point
Frame & deck support 3" x 4" full length structural beams
Rear bumper 2" tubular
Cutter deck thickness 11 gauge
Side skirt thickness 11 gauge
Cutting capacity 1.5
