Specializing in farm equipment sales, parts, and service.

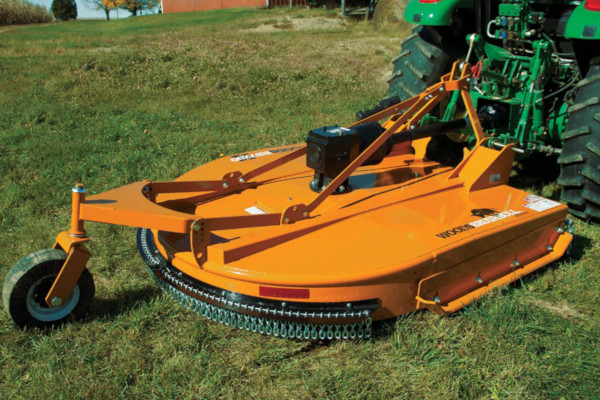

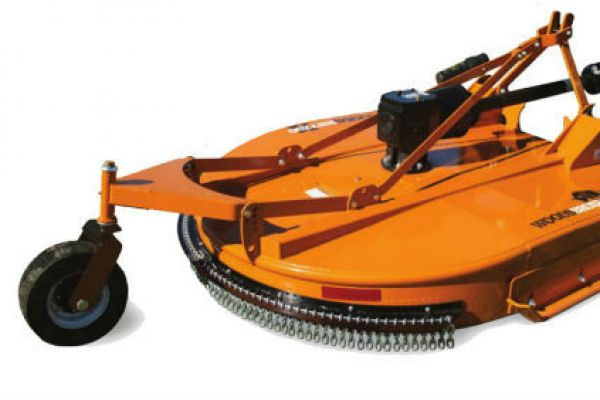

Woods BB7200X

Double tap to zoom



Features

  • 72-inch Single-Spindle Cutter
  • Three-point hitch: Cat 1 and 2
  • Tractor HP range: 50-150 hp
  • Cutting capacity up to 4-inches
  • Adjustable full-length skid shoes
  • Standard blade ring
  • Special heavy-duty stump jumper
  • Optional baffle
  • Optional dual tail wheels
  • Extreme durability with a 3-piece deck plate welded to two 3" x 4" structural beams running the length of the deck, plus a 2-inch tubular rear bumper

Specifications

Cutting width 72"
Transport width 80.5"
Overall length 116"
Cutting height 2" - 12"
Approximate weight 1,440 lbs
PTO Horsepower 50 - 150 hp
Tractor PTO speed 540 rpm
Hitch Cat 1 & 2 / clevis
Safety Shielded Driveline Cat 5
Driveline protection slip clutch
Gearbox output shaft diameter 2.38"
Gearbox horsepower 150 hp
Blades (2) .5" x 4"
Blades composition heat-treated alloy steel
Blade carrier round stump jumper
Blade mount system/pin diameter quick change blade pins/1.5"
Number of spindles 1
Blade tip speed 13,950 fpm
Deck side depth 11.7"
Cutter baffles Optional
Tail wheel - laminated tire 5" x 16"
Frame & deck support 3" x 4" full length structural beams
Rear bumper 2" tubular
Skid-shoes Extreme duty replaceable
Side skirt thickness .25"
Cutting capacity 4"
