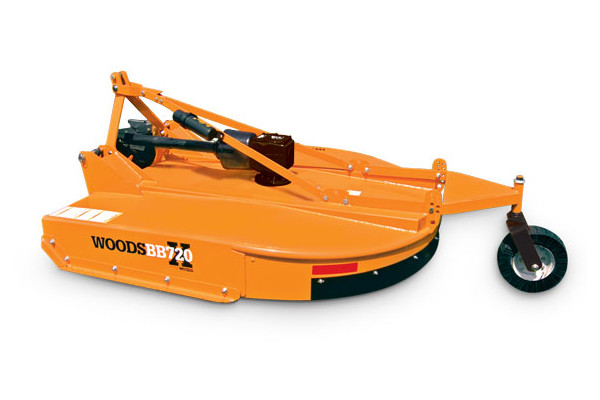

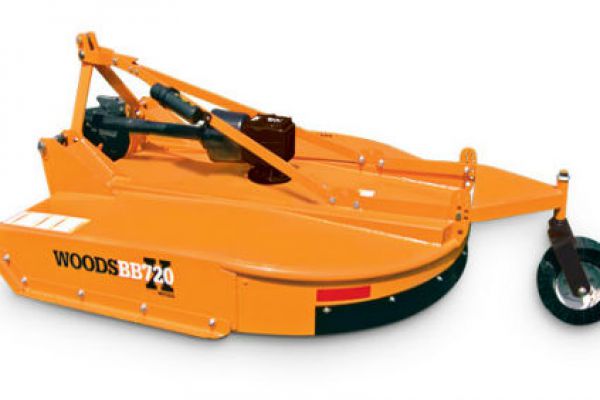

Brushbull Single-spindle Cutters BB600X
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 60-inch Single-Spindle Cutter
- Three-point hitch: Cat 1 and 2
- Tractor HP range: 30-120 hp
- Cutting capacity up to 3-inches
- Standard adjustable baffles for superior material distribution
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| Cutting width | 60" |
| Transport width | 67.5" |
| Overall length | 104" |
| Cutting height | 2" - 12" |
| Approximate weight | 1,068 lbs |
| PTO Horsepower | 30 - 120 hp |
| Tractor PTO speed | 540 rpm |
| Hitch | Cat 1 & 2 / Clevis |
| Quick hitch compatible | yes |
| Driveline | Cat 4 |
| Driveline protection | slip clutch |
| Gearbox output shaft diameter | 2" |
| Gearbox HP | 120 |
| Blades | (2) .5" x 4" |
| Blade composition | heat-treated alloy steel |
| Cutting capacity | 3" |
| Blade carrier | round stump jumper |
| Blade mount system | quick-change blade pins |
| Blade tip speed | 15,525 fpm |
| Blade pin diameter | 1.5" |
| Frame & deck support | 3" x 4" full length structural beams |
| Skid-shoes | heavy-duty replaceable |
| Rear bumper | 2" tubular |
| Deck side depth | 12.6" |
| Side frame thickness | .25"" |
