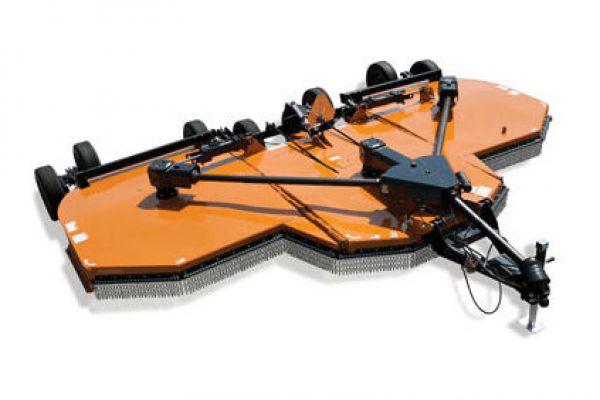

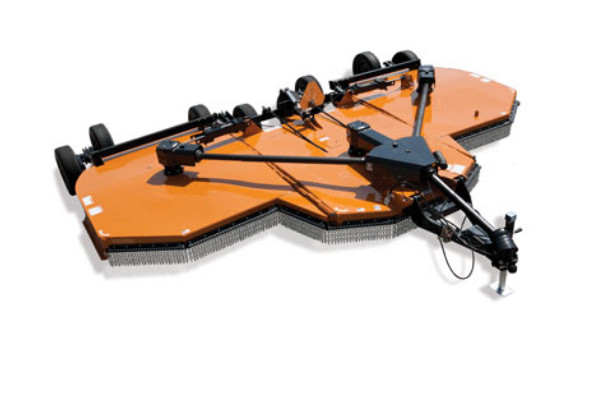

Woods BW240HD

Double tap to zoom



Features

  • 20-foot Heavy-Duty Dual-Wing Cutter
  • Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
  • Tractor HP range: 70-300 hp
  • Cuts brush up to 3-inches in diameter
  • Side frame depth of 13.25 inches – the deepest in the industry
  • Fully baffled deck for even distribution and a finer shred
  • Exclusive quick-change pins enable speedy blade changes in the field

Specifications

PTO Horsepower 70-300 hp
Side frame depth 13.25
Cutting width 240"
Cutting height 2" - 15"
Cutting capacity diameter 3"
Hitch self-leveling clevis; optional pintel ring
Transport width 123"
Overall width / length 250" / 198"
Deck type smooth, sloped
Deck thickness .135"
Side frame thickness .25"
Hinge rod diameter 1" full length
Weight 6,600 lbs
Tongue weight 2,400 lbs
Main driveline rating Cat 6 CV or Cat 5 heavy 3 joint
Output shaft diameter 2.38"
Splitter / spindle gearbox hp 235 (190) hp
Blade type hi-lift, flat or shredder
Blade overlap 6"
Blade tip speed 540 rpm 15,450 fpm
Blade tip speed 1,000 rpm 16,300 fpm
Material flow system standard baffels
Stump jumper type standard round-welded
Wing flex up / down 90° up, 22° down
Suspension standard spring arm suspension or optional tandem spring arms
Wheel type 21" laminated, 24" pneumatic or foam filled used aircraft
  29" pneumatic or foam filled used aircraft, 15" rims less tires
Wing leveling adjustment easy adjust turnbuckle
Shielding rubber belting, single or double chain
