Apply NowWoods BW1620X
Not a current model

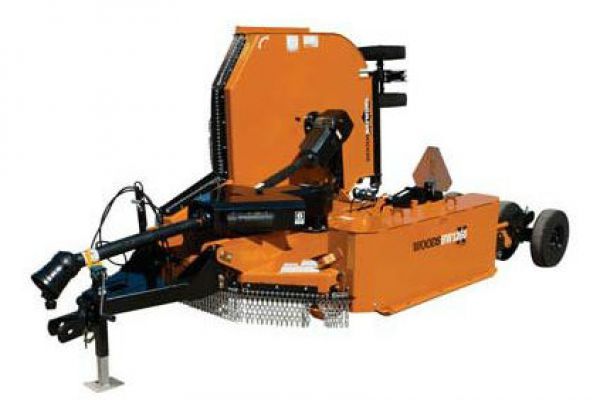

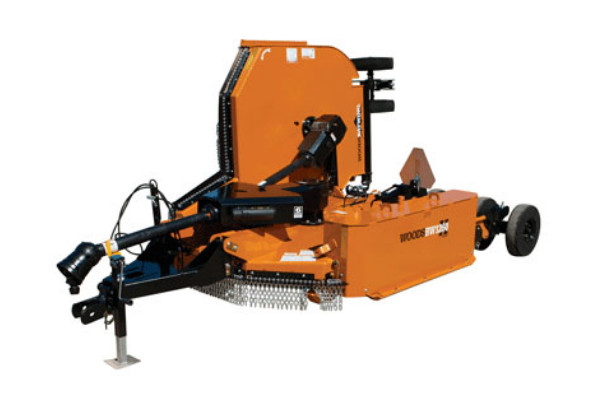

Batwing® Cutters BW1620X
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 13.5-foot Extreme-Duty Single-Wing Cutter
- Main driveline: Cat 6 CV or Cat 5 wing drive
- Tractor HP range: 70-300 hp
- Cuts brush up to 4-inches in diameter
- Side frame depth of 12.5-inches
- Choice of right or left wing
- Dual wheels available on wing and center for extra flotation
- Exclusive quick-change pins enable speedy blade changes in the field
Specs
| PTO Horsepower | 70-300 hp |
| Side frame depth | 12.5" |
| Cutting width | 162" |
| Cutting height | 2" - 15" |
| Cutting capacity diameter | 4" |
| Hitch | standard self-leveling swivel clevis; optional pintel ring |
| Transport width | 100" |
| Overall width / length | 171" / 198" |
| Deck type | smooth, sloped double deck |
| Deck thickness | .135" / .135" upper / lower |
| Side frame thickness | .25" |
| Hinge rod diameter | 1" full length |
| Weight | 8,500 lbs |
| Tongue weight | 2,870 lbs |
| Main driveline rating | Cat 6 CV or Cat 5 heavy 3 joint |
| Output shaft diameter | 2.38" |
| Splitter / spindle gearbox hp | 250 / 210 hp |
| Blade type | .5" x 4" hi-lift, flat |
| Blade overlap | 6" |
| Blade tip speed 540 rpm | 15,450 fpm |
| Blade tip speed 1,000 rpm | 16,650 fpm |
| Material flow system | standard baffles |
| Stump jumper type | standard round-welded |
| Wing flex up / down | left or right wing - 90° up, 22° down |
| Suspension | standard spring arm suspension or optional tandem spring arms |
| Wheel type | 21" laminated, 24" pneumatic or foam filled used aircraft, |
| 29" pneumatic or foam filled used aircraft, 15" rims less tires | |
| Wing leveling adjustment | easy adjust turnbuckle |
| Shielding | rubber belting, single or double chain |
