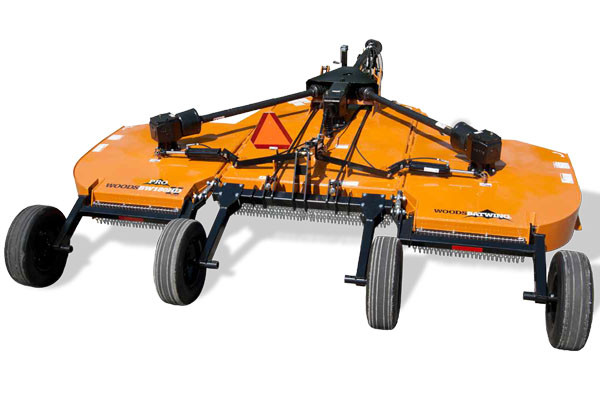

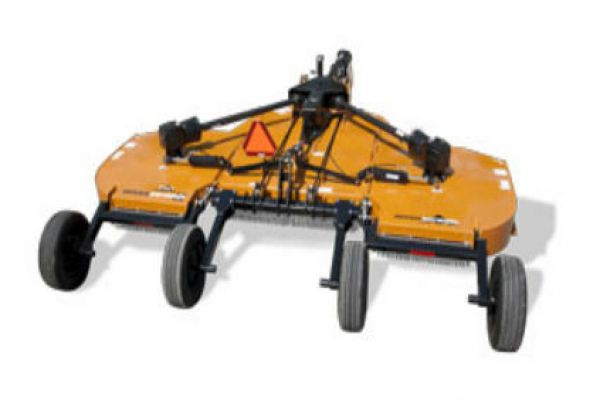

Batwing Cutters BW126XHD PRO
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 10.5-foot Heavy-Duty Single-Wing Cutter
- High torque capacity and deep 7 gauge deck cuts more in less time
- Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
- Tractor HP range: 55-235 hp
- Swivel clevis or optional pintel ring hitch
- Cuts brush up to 3.5-inches in diameter
- Side frame depth of 13 inches increases cut material capacity
- Choice of right or left wing
- Dual-wheels available on wing and center for extra flotation
- Full-length, 1-inch wing hinge pin
- Fully baffled deck for even distribution and a finer shred
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| PTO Horsepower | 55-235 hp |
| Side frame depth | 13" |
| Cutting width | 126" |
| Cutting height | 2" - 15" |
| Cutting capacity diameter | 3.5" |
| Hitch | swivel clevis; optional pintel ring |
| Transport width | 93" |
| Overall width / length | 136" / 205" |
| Deck type | smooth, sloped |
| Deck thickness | .179 (7 gauge) |
| Side frame thickness | .25" |
| Hinge rod diameter | 1" full length |
| Weight | 4,500 lbs |
| Tongue weight | 1,575 lbs |
| Main driveline rating | Cat 6 CV or Cat 5 heavy 3 joint |
| Output shaft diameter | 2.38" |
| Splitter / spindle gearbox hp | 250 / 210 hp |
| Blade type | .5" x 4" quick change blade pins, hi-lift, flat or shredder |
| Blade overlap | 6" |
| Blade tip speed 540 rpm | 16,000 fpm |
| Blade tip speed 1,000 rpm | 16,000 fpm |
| Material flow system | fully baffled deck |
| Stump jumper type | standard round-welded |
| Wing flex up / down | 90° up, 22° down |
| Suspension | spring on cylinder / walking tandem spring arms |
| Wheel type | 15" rims, 21" laminated, 24" or 29" used aircraft tires or foam-filled aircraft tires |
| Wing leveling adjustment | easy adjust turnbuckle |
| Shielding | rubber belting, single or double chain |
