Apply NowWoods BW126X
Not a current model

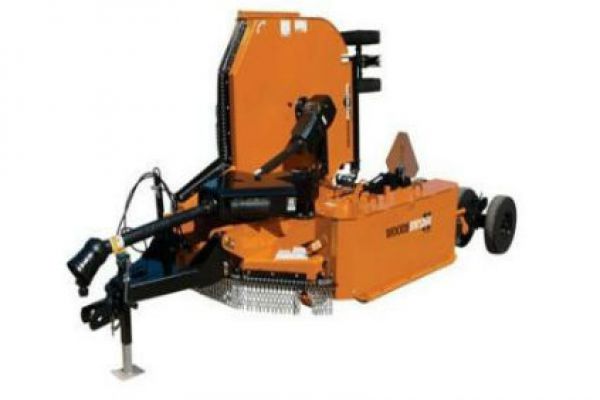

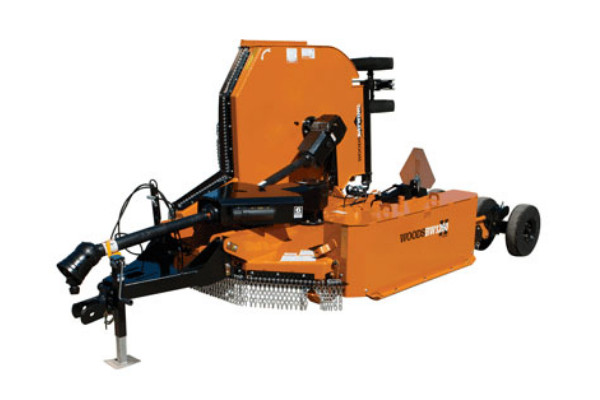

Batwing® Cutters BW126X
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 10.5' Standard Duty Single Wing Cutter
- Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
- Dual-wheels available on wings and center for extra flotation
- Cuts brush up to 2.5-inches in diameter
- Wings fold up independently to a narrow 96" transport width and lock securely for quick and easy transport
- Thirteen-inch side frame depth increases cut material capacity and earns the distinction of the deepest deck in the industry
- Fully baffled deck for even distribution
Specs
| PTO Horsepower | 45 - 160 hp |
| Side frame depth | 13" |
| Cutting width | 126" |
| Cutting height | 2" - 15" |
| Cutting capacity diameter | 2.5" |
| Hitch | clevis |
| Transport width | 93" |
| Overall width / length | 136" / 205" |
| Deck type | smooth, sloped |
| Deck thickness | .135" |
| Side frame thickness | .25" |
| Hinge rod diameter | 1" full length |
| Weight | 3,950 lbs |
| Tongue weight | 1,380 lbs |
| Main driveline rating | Cat 6 CV or Cat 5 heavy 3 joint |
| Output shaft diameter | 2" |
| Splitter / spindle gearbox hp | 160 / 120 hp |
| Blade type | .5" x 4" quick change blade pins, hi-lift, flat or shredder |
| Blade overlap | 6" |
| Blade tip speed 540 rpm | 15,000 fpm |
| Blade tip speed 1,000 rpm | 16,000 fpm |
| Material flow system | fully baffled deck |
| Stump jumper type | standard round-welded |
| Wing flex up / down | 90° up, 22° down |
| Suspension | spring on cylinder |
| Wheel type | 15" rims, 21" laminated, 24" or 29" used aircraft tires or foam-filled aircraft tires |
| Wing leveling adjustment | easy adjust turnbuckle |
| Shielding | rubber belting, single or double chain |
