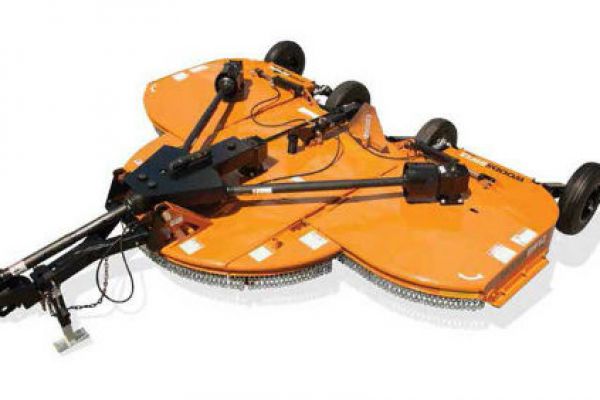

Woods BW12

Double tap to zoom



Features

  • The Original Batwing® in a New 12-foot width, designed specifically for compact tractors
  • 12-foot Dual-wing cutter for compact/utility tractors
  • Main driveline: Cat 4
  • Tractor PTO HP: 35 hp minimum
  • Cuts brush up to 1.5-inches in diameter
  • Side frame depth of 11-inches
  • Lighter tongue weight ideal for use on lower horsepower compact and utility tractors
  • Fully baffled deck for even distribution and a finer shred
  • Standard integrated chain shielding
  • Exclusive quick-change pins enable speedy blade changes in the field

Specifications

PTO Horsepower 35 hp minimum
Tractor hitch swivel clevis
Cutting width 12 ft
Cutting height 2" - 12"
Cutting capacity 1.5"
Gearbox HP 160 hp - splitter / 75 hp - center and wing
Blade tip speed 14,300 fpm center / 14,900 fpm wing
Deck thickness 12 gauge, high-strength steel
Side frame thickness 7 gauge
Deck side depth 11"
Weight (tongue / total) 750 lbs / 2450 lbs
Blade dimensions .5" x 4"
Blade overlap 6"
Flex wing 90° up, 22° down
Tires laminated, used aircraft, foam-filled aircraft
Suspension spring on center section
PTO driveline Main - Cat 4 / Wing - Cat 3
Cutting area shielding standard chain shielding
