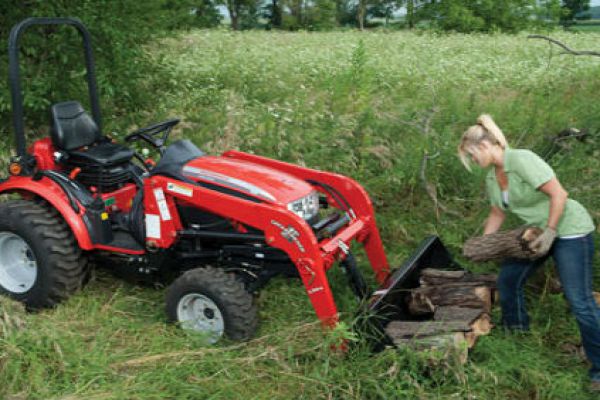

Woods LS84

Double tap to zoom



Features

  • Tractor HP range: 20-30 hp
  • 84-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 20-30 hp
Bucket widths 48", 54", 60"
Bucket rated capacity c.c. ft. (66" / 72") 7.4 / 8.4 / 9.4
Working width 4"
Maximum lift height 84"
Clearance under bucket 64"
Reach at maximum height 24"
Bucket roll back angle 24°
Bucket dump angle 45°
Tested hydraulic PSI 2,100 psi
Lift capacity at bucket pin 1,000 lbs
Breakout at bucket pin 1,700 lbs
Lift capacity at 19.7" ahead of bucket pins 700 lbs
Breakout at 19.7" ahead of bucket pins 1,200 lbs
Pivot pins diameter .75", 1"
Lift cylinder diameter 1.57"
Bucket cylinder diameter 2.48"
