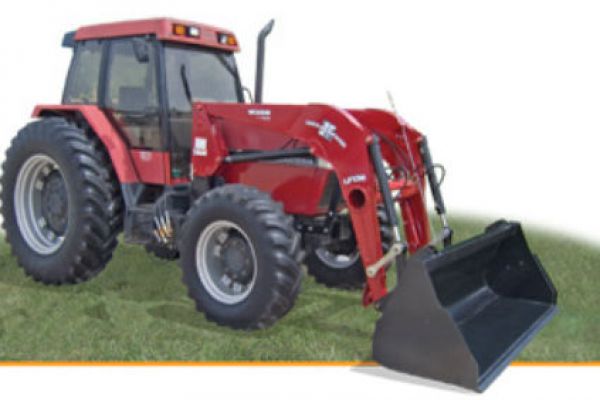

Woods LF156

Double tap to zoom



Features

  • Tractor HP range: 85-140 hp
  • 156-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 85-140 hp
Bucket widths 84", 96"
Bucket rated capacity c.c. ft. (66" / 72") 28.7 / 33
Working width 6"
Maximum lift height 156"
Clearance under bucket 121"
Reach at maximum height 36"
Bucket roll back angle 35°
Bucket dump angle 50°
Tested hydraulic PSI 2,750 psi
Lift capacity at bucket pin 4,850 lbs
Breakout at bucket pin 7,140 lbs
Lift capacity at 19.7" ahead of bucket pins 3,480 lbs
Breakout at 19.7" ahead of bucket pins 4,990 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.95"
Bucket cylinder diameter 2.76"
