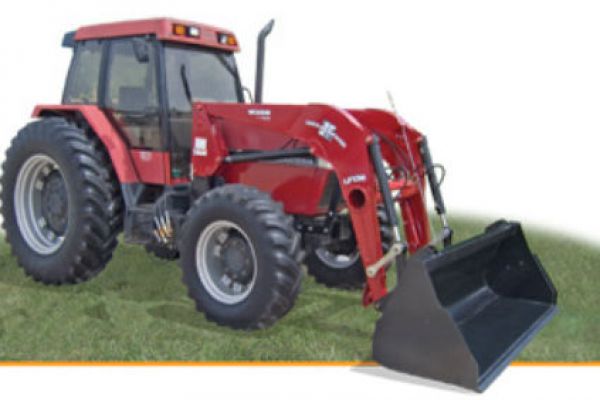

Woods LF138

Double tap to zoom



Features

  • Tractor HP range: 70-110 hp
  • 138-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 70-110 hp
Bucket widths 84", 96"
Bucket rated capacity c.c. ft. (66" / 72") 28.7 / 33
Working width 6"
Maximum lift height 138"
Clearance under bucket 103"
Reach at maximum height 32"
Bucket roll back angle 35°
Bucket dump angle 50°
Tested hydraulic PSI 2,750 lbs
Lift capacity at bucket pin 4,280 lbs
Breakout at bucket pin 6,410 lbs
Lift capacity at 19.7" ahead of bucket pins 2,940 lbs
Breakout at 19.7" ahead of bucket pins 4,440 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.76"
Bucket cylinder diameter 2.76"
