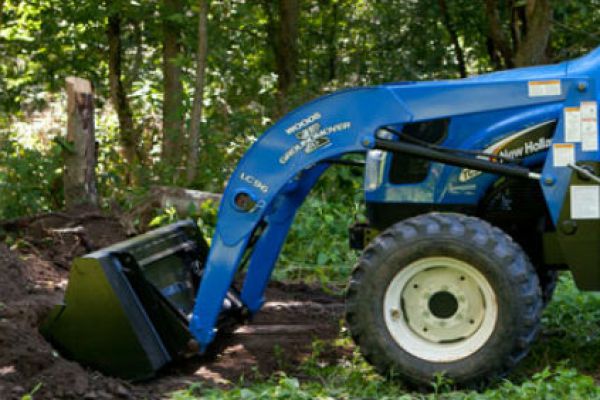

Woods LC96

Double tap to zoom



Features

  • Tractor HP range: 20-40 hp
  • 96-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 20-40 hp
Bucket widths 60", 66"
Bucket rated capacity c.c. ft. (66" / 72") 9.4 / 10.4
Working width 4"
Maximum lift height 96"
Clearance under bucket 79"
Reach at maximum height 30"
Bucket roll back angle 24°
Bucket dump angle 45°
Tested hydraulic PSI 2,150 psi
Lift capacity at bucket pin 1,200 lbs
Breakout at bucket pin 2,150 lbs
Lift capacity at 19.7" ahead of bucket pins 900 lbs
Breakout at 19.7" ahead of bucket pins 1,650 lbs
Pivot pins diameter 1", 1.25"
Lift cylinder diameter 1.77"
Bucket cylinder diameter 2.76"
