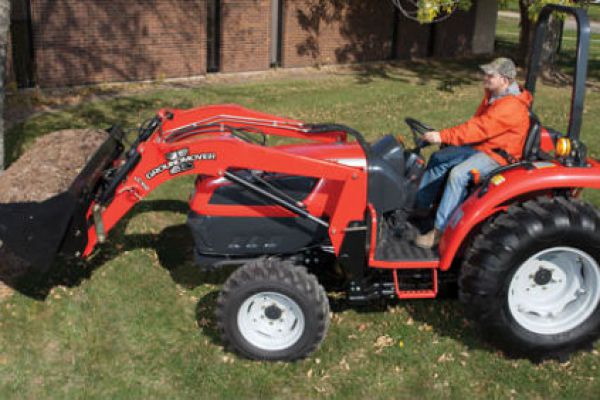

Woods LC114 for sale at Coastal Tractor, California

Double tap to zoom

Woods LC114 for sale at Coastal Tractor, California



Features

  • Tractor HP range: 30-50 hp
  • 114-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specs

Recommended tractor horsepower 30-50 hp
Bucket widths 60", 66", 72"
Bucket rated capacity c.c. ft. (66" / 72") 11.6 / 12.8 / 14
Working width 5"
Maximum lift height 114"
Clearance under bucket 90"
Reach at maximum height 32"
Bucket roll back angle 35°
Bucket dump angle 50°
Tested hydraulic PSI 2,500 psi
Lift capacity at bucket pin 2,400 lbs
Breakout at bucket pin 4,575 lbs
Lift capacity at 19.7" ahead of bucket pins 1,950 lbs
Breakout at 19.7" ahead of bucket pins 3,375 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.48"
Bucket cylinder diameter 2.36
