Apply NowWoods HLRG86
Root Grapples HLRG86

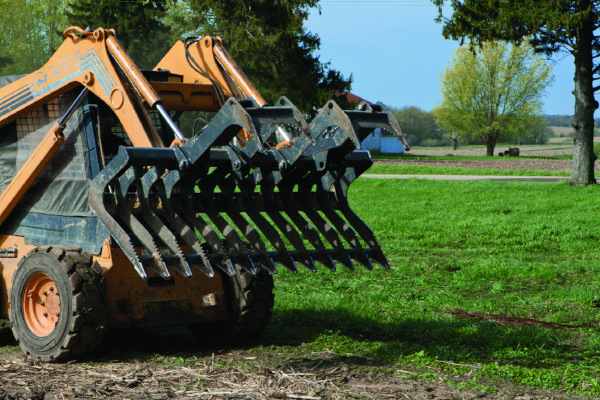

The Woods Alitec Root Grapple moves bulky, hard-to-handle materials easily and safely.
Features
- 86-inch working width
- Root Grapple lets dirt sift through when loading rocks, trash, and other loose material
- Twin hydraulic cylinders allow for independent clamping on uneven material
- Woods’ proprietary serrated cutting edge holds fast to trees and debris
- Standard cylinder guards
- Unique design allows smooth grading of surfaces after removing debris
- Skid steer or ISO Quick-attach available
- Skid steer sizes – Class 5 – 8 (1,351 – 2,700 lbs.)
Specs
| Ag Tractor Sizes (hp) | 45-100 (up to 10,000 lbs) |
| Overall Width | 86" |
| Approximate Operating Weight | 720 lbs. |
| Length (depth) | 34" |
| Height | 27" |
| Number of Tines | 13 |
| Tine Spacing | 6.75" |
| Grapple Opening | 37" |
| Clamping Force Per Grapple | 3,000 lbs. |
| Cylinder Bore | 2.76" |
| Cylinder Rod | 1.38" |
| Pivot Pins | 1.25" |
| Greasable Pivots | Yes |
| Cutting Edge | Serrated |
| Hose Protection | Yes (sleeve and internal routing) |
| Options | Hydraulic pressure protection, slat kit, end plate extensions |
