Apply NowWoods VR73A

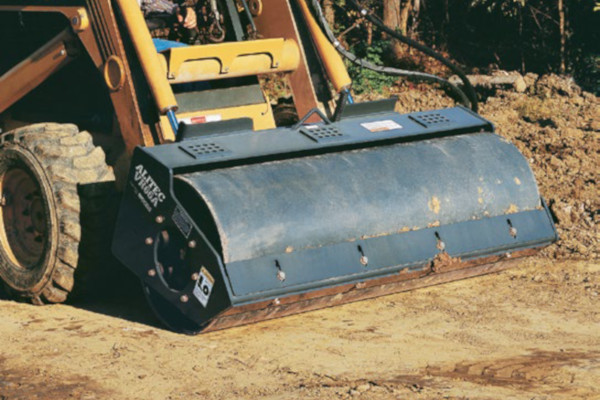

Vibratory Rollers VR73A
Pack it down tight with Woods Alitec™ Vibratory Rollers
Features
- 73-inch drum width
- 10,240 pounds maximum output force
- Low-flow hydraulic design allows full roller function and maximum compaction at 15 gpm
- Choose from the smooth drum for light or sandy soils or padded sheepsfoot drum for heavy clay-type soils
Specs
| Working width | 73" (1,854.2 mm) |
| Overall width | 80.5" (2,044.7 mm) |
| Drum oscillation | +/- 15° |
| Overall height | 27" (685.8 mm) |
| Overall length | 33" (838.2 mm) |
| Drum diameter | 24" (609.6 mm) |
| Maximum output force | 10,240 lbs (4,655 kg) |
| Frequency | 1,033 - 2,160 vpm |
| Operating weight (smooth drum) | 1,864 lbs (847 kg) |
| Operating weight (padded drum) | 1,785 lbs (811 kg) |
| Hydraulic flow requirement | 11 - 23 gpm (42-87 lpm) |
| Hydraulic pressure requirement | 1,500 - 3,200 psi (103-241 bar) |
