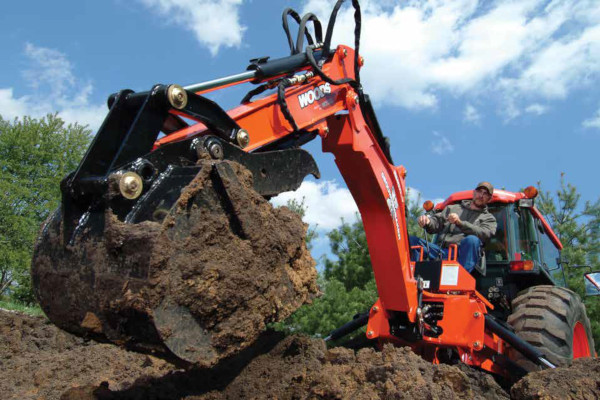

Apply NowWoods BH90-X
Not a current model
Backhoes BH90-X
Get a Woods Groundbreaker® Backhoe to handle your most challenging digging and trenching jobs. Backed by Woods’ reputation for durability and reliability, the X-models feature our construction-grade Gannon® buckets. Tested in real-world conditions, the entire Groundbreaker® line offers an excavator-style boom, rugged c... + Read More
Features
- 9-foot maximum digging depth
- Tractor HP range: 30-70 hp
- Bucket widths from 12 to 36-inches
- Durable, heavy-duty boom, dipper stick and dual swing cylinders
- Heavy-duty cylinders to endure greater force
- “Box section” design adds strength without weight, increasing lifting power
- Designed to endure the most rigorous commercial digging, with years of worry-free service.
- Optional mechanical or hydraulic thumb to easily pick up bulky materials
- Available in black or paint colors to match most tractor brands
Specs
| Tractor Engine HP | 30 - 70 hp |
| Digging depth - 2' flat | 109" |
| Digging depth - 8' flat | 91" |
| Reach from swing pivot | 145" |
| Loading height | 89" |
| Transport height | 97" |
| Swing arc | 180° |
| Bucket rotation | 180° |
| Stabilizer spread (up) | 66" |
| Stabilizer spread (down) | 100" |
| Relief pressure | 2,500 psi |
| Bucket digging force | 4,180 / 5,070 lbs* |
| Dipperstick digging force | 2,900 lbs |
| 2-cylinder swing | standard |
| Swing speed control | standard |
| Bucket widths | 12" - 36" |
| Bolt-on vs. pin-on teeth | pin-on |
| Thumb | optional |
| Flip-over stabilizers | standard |
| Stabilizer street pads | optional |
| PTO pump kit | optional |
| Clean-up (ditching) bucket | 36" |
| Cemetery bucket | 36" |
| Quick-attach bucket | optional |
