Apply NowWoods S30CD
Not a current model

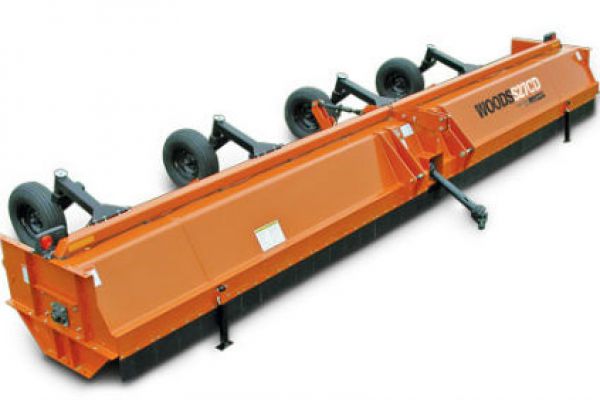

Flail Shredders S30CD
Ideal for residue management in row crop and non-row crop applications, Woods Flail Shredders lead the industry in innovative design, strength and performance. The tri-lateral hood gives you quadruple shredding action for a more complete cut. The massive super structure ensures a long life and resists vibration. The hi... + Read More
Features
- High capacity gearbox with large oil volume reduces heat buildup, extending bearing and gear life
- Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals
- 12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity, resulting in smoother operation
Specs
| Minimum Tractor PTO HP | 240 |
| Working Width (in) | 363 |
| Overall Width (in) | 380 |
| Cutting Height (in) | 2 to 14 |
| Approximate Weight (lbs.) | 6,958 |
| Tractor PTO Speed (rpm) | 1,000 |
| Gearbox Rating (hp) | 300 *Gearbox horsepower ratings listed are based on field testing. |
| Gearbox Warranty | 5 years - limited |
| Optional Hitches | 3-point mounted |
| Driveline 2 Point and 3 Point | CAT 6 |
| Pull-type | CAT 6 CV |
| Knife Types | Double-edged L (6mm), double-edged HD-cotton Duraface® (8mm) L; cup or contour cup |
| Knife Retention | Bolt-on (no D-rings) |
| Knife Pattern | Spiral |
| Number of L Knives | 352 |
| Lift HP Required | 190 |
| Flail Tube Diameter (O.D.) (in) | 12.75 |
| Flail Tube Bearing Diameter (in) | 2.18 |
| Hood Type | Smooth, trilateral shape |
| Hood/Deck Thickness (in) | .18 (optional wearliner available) |
| End Plate Thickness (in) | 0.25 |
| Shielding | Rubber belting or steel flaps |
| Wheel Size (in) | 9.5L x 15 |
| Wheel Arm Types | Caster |
| Automatic Clutch | Standard |
