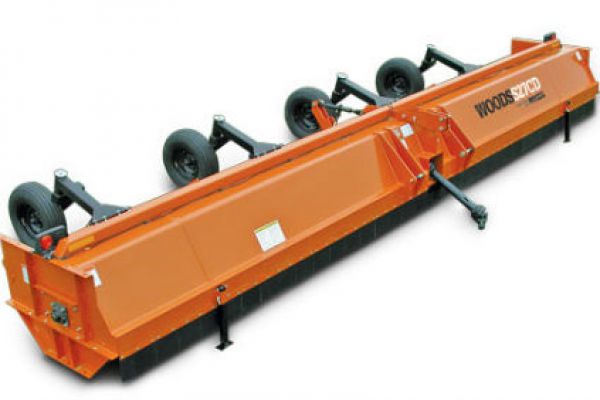

Woods S25CD

Double tap to zoom



Features

  • 303-inch cutting width
  • Minimum Tractor HP: 150 hp
  • Three massive tubular beams support the shredder body, for increased strength and reduced vibration
  • Shredder drive protected by either a 24,000 lbs. inch overrunning disc clutch or a 30,000 lbs. inch overrunning automatic clutch
  • High capacity gearbox with large oil volume reduces heat buildup and extends bearing and gear life
  • Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals
  • 12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity for smoother operation
  • Optional end-tow transport hitch to easily move to the next job

Specifications

PTO Horsepower 150 - 300 hp
Working width 303"
Overall width 310"
Cutting height 2" - 14"
Approximate weight 5,838 lbs
Tractor Engine HP 150 hp minimum
Tractor PTO speed 1,000 rpm
Gearbox rating 300 hp
Gearbox warranty 5 years - limited
Hitch type 3-point, 2-point (semi-mounted), or pull (pintle)
3-point hitch Cat 2 & 3
Driveline size Cat 6
Driveline system Disc or automatic clutch
Knife options 6mm L-knives, 8mm HD-Cotton (Duraface) L-knives or 11-inch cup knives
Knife retention pattern Bolt-on (no D-rings)
Knife speed 133 mph
Knife tip speed 11,700 fpm
Flail tube speed 1,350 rpm
Flail tube diameter (O.D.) 12.75"
Flail tube bearing diameter 2-3/16"
Hood Type Smooth, trilateral shape
Hood/deck thickness .18" (optional wearliner available)
End plate thickness .25"
Shielding Rubber belting or flaps
Wheel arm types Rigid strut or caster
Options End transport kit, Partial wear liner (doubles body thickness at high wear area), Swing flaps kit,
Divider shield, Anti-push skid plate kit, Hydraulic center cutter kit
