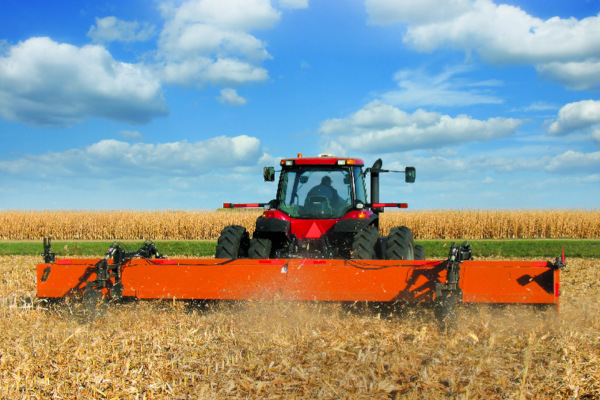

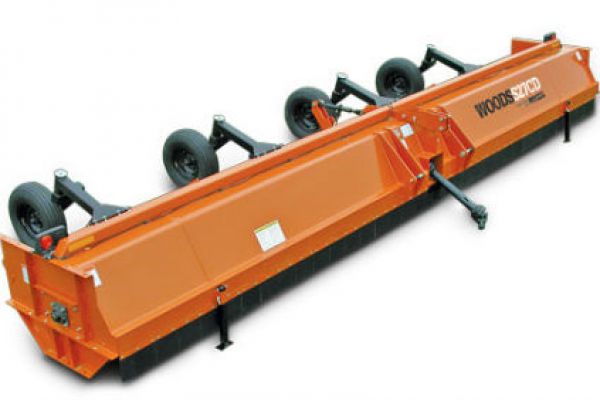

Woods S22CD for sale at Coastal Tractor, California

Double tap to zoom

Woods S22CD for sale at Coastal Tractor, California



Features

  • High capacity gearbox with large oil volume reduces heat buildup, extending bearing and gear life
  • Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals
  • 12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity, resulting in smoother operation

Specs

Minimum Tractor PTO HP 132
Working Width (in) 271
Overall Width (in) 278
Cutting Height (in) 2 to 14
Approximate Weight (lbs) 5,308
Tractor PTO Speed (rpm) 1,000
Gearbox Rating (hp) 300
*Gearbox horsepower ratings listed are based on field testing.
Gearbox Warranty 5 years - limited
Optional Hitches 2-point, 3-point (quick-hitch compatible) pull
Driveline 2 Point and 3 Point CAT 6
Pull-type CAT 6 CV
Knife Types Double-edged L (6mm), double-edged HD-cotton Duraface® (8mm) L; cup or contour cup
Knife Retention Bolt-on (no D-rings)
Knife Pattern Spiral
Number of L Knives 256
Lift HP Required 135
Pull HP Required 135
Flail Tube Diameter (O.D.) (in) 12.75
Flail Tube Bearing Diameter (in) 2.18
Hood Type Smooth, trilateral shape
Hood/Deck Thickness (in) .18 (optional wearliner available)
End Plate Thickness (in) 0.25
Shielding Rubber belting or steel flaps
Wheel Size (in) 9.5L x 15
Wheel Arm Types Rigid strut or caster
Optional Friction Clutch 24,000 lbs inch rating
Automatic Clutch 30,000 lbs inch rating (1.75-inch 20 PTO only)
