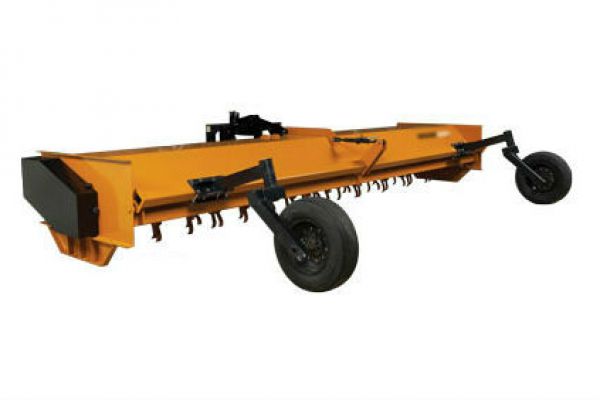

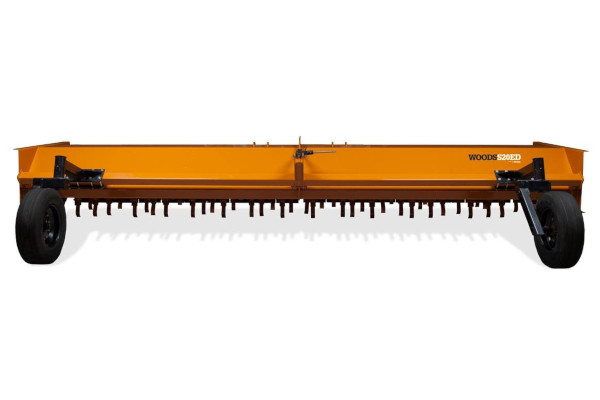

Woods S18ED

Double tap to zoom

216-inch cutting width
Tractor HP range: 140-300 hp
Two massive, engineered box sections to increase shredder strength and rigidity, while reducing vibration
High-quality gearbox with aluminum gear casing to effectively disperse and reduce heat buildup to extend bearing and gear life
Large diameter flail tubes help maintain balance and rigid 10.75-inch diameter flail tubes resist vibration
Spiral-mounted knife configuration for smoother, more efficient operation
Standard safety lighting kit to safely move from one field to the next
Optional end-tow transport hitch to easily move to the next job

PTO Horsepower	110 - 300 hp
Tractor PTO	1,000 rpm
Cutting height	2" - 14"
Working width	234"
Number of L Knives	208
Number of C Knives	104
Lift HP Required	135 hp
Pull HP Required	110 hp
Rotor Speed	1,350 rpm
Blade tip speed	11,700 (133 mph)
Gearbox hp rating	300 hp
Gearbox warranty	6 year limited
Driveline, 3 Point	Cat 6, with overrunning clutch
Driveline, Pull-type	Cat 6 CV, with overrunning clutch
Hood Type	Trilateral shape
Hood Thickness	.18" (optional wear liner available)
End plate thickness	.25"
Flail Tube Diameter	10.75"
Rotor Shaft Size	2.18" (2-3/16")
Flail Tube End Bearing	2.18" (2-3/16")
Shielding	Rubber belting or flaps
Wheel Size	9.5L" x 15"
Knife Retention	Bolt-on (no D-rings)
Knife Pattern	Spiral
Knife Types	Double-edged L (6mm), double-edged HD-cotton Duraface® L (8mm); cup or contour cup
Wheel arm types	Rigid strut or caster
Optional Hitches	3-point, Cat 2 or Cat 3 (quick-hitch compatible), pull
Options	End tow transport hitch, Knives (L knife, hard-faced cotton knife, and cup knife), Hitch (pull-type or 3 point mounted), Wheel arms (rigid or swivel), Tires (foam-filled aircraft or implement), Contour knife patterned to fit row spacing
