Apply NowWoods S15ED
Not a current model

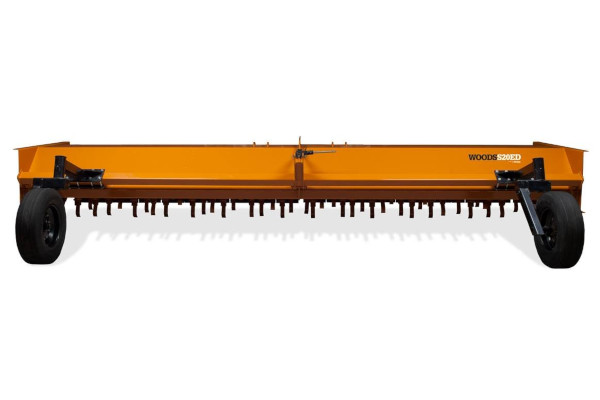

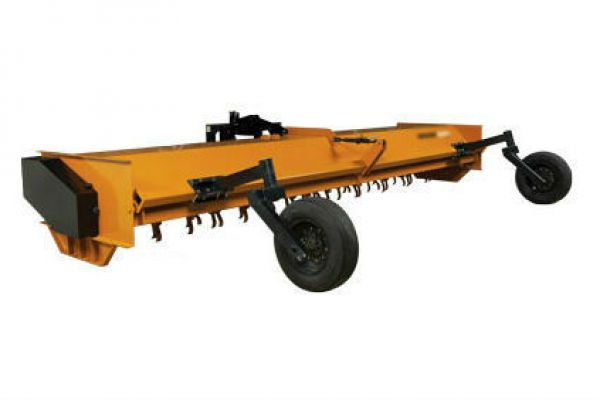

Flail Shredders S15ED
Ideal for residue management in row crop and non-row crop applications, Woods Flail Shredders lead the industry in innovative design, strength and performance. The tri-lateral hood gives you quadruple shredding action for a more complete cut. The massive super structure ensures a long life and resists vibration. The hi... + Read More
Features
- 180-inch cutting width
- Tractor HP range: 120-300 hp
- Two massive, engineered box sections to increase shredder strength and rigidity, while reducing vibration
- High-quality gearbox with aluminum gear casing to effectively disperse and reduce heat buildup to extend bearing and gear life
- 5-year gearbox limited warranty
- Large diameter flail tubes help maintain balance and rigid 10.75-inch diameter flail tubes resist vibration
- Spiral-mounted knife configuration for smoother, more efficient operation
- Standard safety lighting kit to safely move from one field to the next
- Optional end-tow transport hitch to easily move to the next job
Specs
| PTO Horsepower | 90 - 300 hp |
| Tractor PTO | 1,000 rpm |
| Cutting height | 2" - 14" |
| Working width | 198" |
| Number of L Knives | 168 |
| Number of C Knives | 84 |
| Lift HP Required | 120 hp |
| Pull HP Required | 90 hp |
| Rotor Speed | 1,350 rpm |
| Blade tip speed | 11,700 (133 mph) |
| Gearbox hp rating | 300 hp |
| Gearbox warranty | 6 year limited |
| Driveline, 3 Point | Cat 6, with overrunning clutch |
| Driveline, Pull-type | Cat 6 CV, with overrunning clutch |
| Hood Type | Trilateral shape |
| Hood Thickness | .18" (optional wear liner available) |
| End plate thickness | .25" |
| Flail Tube Diameter | 10.75" |
| Rotor Shaft Size | 2.18" (2-3/16") |
| Flail Tube End Bearing | 2.18" (2-3/16") |
| Shielding | Rubber belting or flaps |
| Wheel Size | 9.5L" x 15" |
| Knife Retention | Bolt-on (no D-rings) |
| Knife Pattern | Spiral |
| Knife Types | Double-edged L (6mm), double-edged HD-cotton Duraface® L (8mm); cup or contour cup |
| Wheel arm types | Rigid strut or caster |
| Optional Hitches | 3-point, Cat 2 or Cat 3 (quick-hitch compatible), pull |
| Options | End tow transport hitch, Knives (L knife, hard-faced cotton knife, and cup knife), Hitch (pull-type or 3 point mounted), Wheel arms (rigid or swivel), Tires (foam-filled aircraft or implement), Contour knife patterned to fit row spacing |
