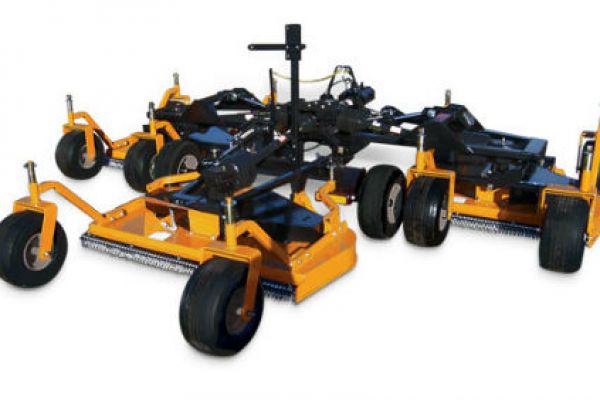

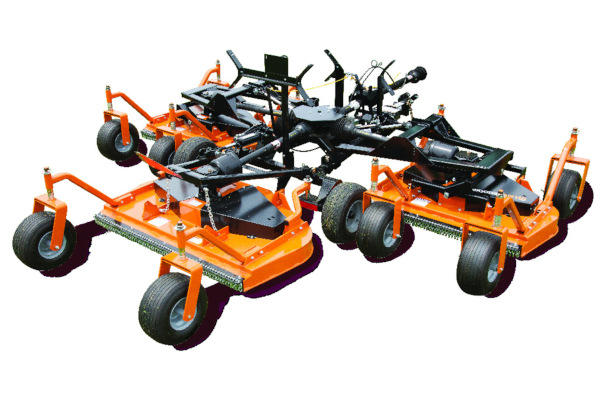

Woods TBW204

Double tap to zoom



Features

  • 17-foot cutting width
  • Tractor HP range: 40-80 hp
  • Carrier bearing on the input driveline provides support, making it easier to attach and allowing for tighter turns
  • Superior cutting capabilities combined with contoured wing decks, to let you quickly cut large, uneven areas of turf while maintaining quality
  • Rounded front, tapered rear deck design allows mowing close to objects without damage
  • Round skid rod adds strength to deck skirt and allows deck bottom to glide over roots and uneven turf
  • Optional mulching kit, highway light kit and anti-scalp roller kits available

Specifications

PTO Horsepower 40 - 60 hp
Cutting width 207"
Cutting height 1" - 5"
Wing deck cutting width 72"
Deck overlap 6"
Overall width 206"
Transport width 114"
Maximum overall length 183"
Transport length 161"
Horsepower required 40 - 80 hp
Splitter gearbox horsepower 100 hp
Deck gearbox horsepower 75 hp
Blade tip speed 18,000 fpm
Drive type gearbox over v-belt
Input driveline Cat 4 CV (constant velocity)
Wing drivelines Cat 3
Transport tires (2) 20.5 X 8 - 10
Caster wheel bearings tapered roller bearings
Caster wheels (10) 18 x 9.5 - 8 pneumatic
Deck thickness 8 gauge
Wing deck lift cylinders 3.5" x 10", single acting
Center deck lift cylinders 3" x 8" single acting
Trailer frame construction .25" wall tubing
Hitch adjustment floating clevis, multi-position
Blade spindles bearings greasable tapered roller
Blade dimensions (9) .25" x 2.5"
Blade spindles (9) cast-iron
Cutting height adjustment spacer on caster
Belts B-section, Kevlar®
Belt adjustment spring loaded idler
Chain shielding standard
