Apply NowWoods TBW144
Not a current model

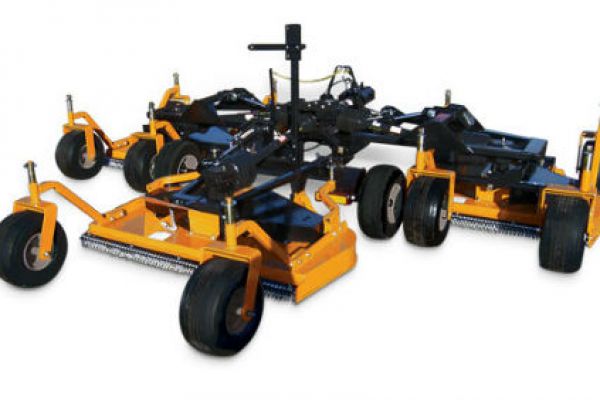

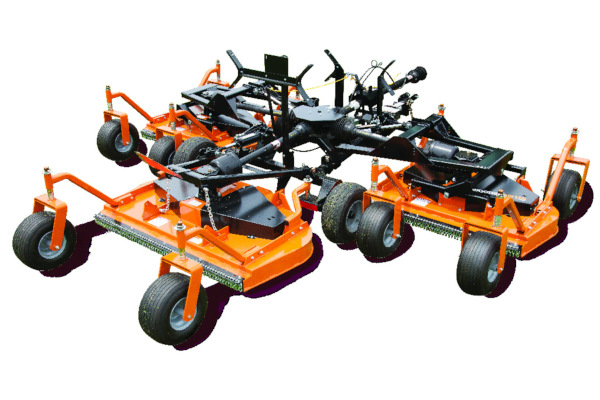

Turf Batwing TBW144
For those who demand a professionally groomed lawn, Woods high-performance finish mowers ensure a clean, crisp, manicured appearance year after year. Our unique rounded front, tapered-side rear discharge deck allows you to mow with better maneuverability – reducing trim time and increasing productivity. Heat-treated, a... + Read More
Features
- Carrier bearing on the input driveline provides support, making it easier to attach to the tractor and allowing tighter turns
- Superior cutting capabilities are combined with contoured wing decks to let you quickly cut large, uneven areas of turf without sacrificing cut quality
- Rounded front, tapered rear deck design allows mowing close to objects without damage
- Round skid rod glides deck bottom over roots and uneven turf – adding strength to the deck skirt
- Standard six-year gearbox limited warranty and three-year spindle limited warranty
- Tapered roller bearings in wheels and blade spindles
- Floating hitch design flexes to allow the mower to follow the terrain with less stress and wear on the tractor drawbar. Adjustable to allow better fit on multiple tractor drawbar heights
Specs
| Tractor PTO Speed (rpm) | 540 |
| Tractor PTO HP | 30-80 |
| Cutting Width (in) | 144 |
| Belt | B-section, Kevlar® |
| Belt Adjustment | Spring-loaded idler |
| Blade Spindles / Bearings | Greasable tapered roller |
| Blade Tip Speed (fpm) | 18,000 |
| Caster Wheels (in) | (10) 15 x 6-6 pneumatic |
| Deck Thickness (ga) | 8 |
| Overall Width (in) | 146 |
| Weight (lbs) | 3010 (shipping) |
| Blades (in) | (9) .25 x 2.5 |
| Cutting Height (in) | 1 to 5 |
| Blade Spindles | (9) cast iron |
| Caster Wheel Bearings | Tapered roller bearings |
| Center Deck Lift Cylinders (in) | 3 x 8 single acting |
| Chain Shielding | Standard |
| Cutting Height Adjustment | Spacer on caster |
| Deck Overlap (in) | 6.5 |
| Drive Type | Gearbox over v-belt |
| Hitch Adjustment | Floating clevis, multi-position |
| Input Driveline | CAT 4 CV (constant velocity) |
| Maximum Overall Length (in) | 173 |
| Splitter Gearbox HP | 100 |
| Trailer Frame Construction (in) | .25 wall tubing |
| Transport Length (in) | 158 |
| Transport Tires (in) | (2) 20.5 X 8-10 |
| Transport Width (in) | 96 |
| Wing Deck Cutting Width (in) | 48.5 |
| Wing Deck Lift Cylinders (in) | 3.5 x 10 single acting |
| Wing Drivelines | CAT 3 |
