Specializing in farm equipment sales, parts, and service.

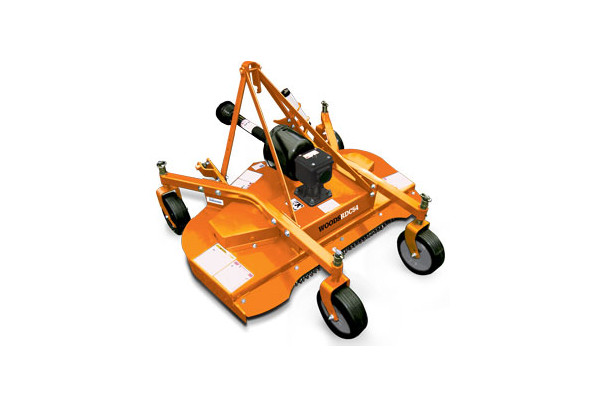

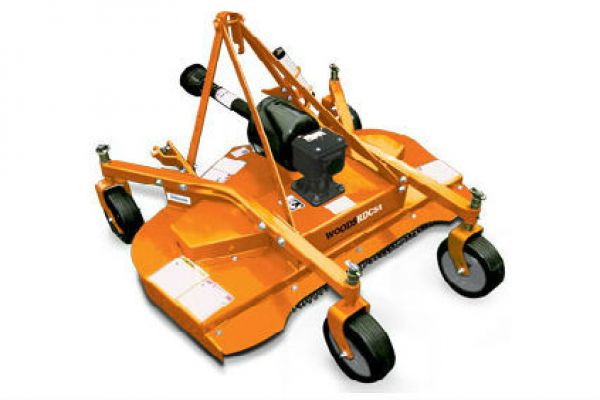

Woods RDC54

Double tap to zoom



Features

  • 54-inch cutting width, Rear Discharge
  • Three-point hitch: Limited Cat 1
  • Ideal for 15-25 horsepower compact tractors
  • 4.6-inch deck depth, along with baffling and rear discharge design for exceptional material distribution and a high-quality cut
  • Rounded front corners and tapered deck sides improve maneuverability and grass discharge
  • Spring loaded idler pulleys

Specifications

Cutting width 54"
Cutting height 1" - 4.5"
Overall width 55"
Overall length 51.65"
Weight 401 lbs
PTO Horsepower 15 - 25 hp
Tractor PTO speed 540 RPM
Hitch/Quick-hitch compatible Limited Cat 1 / no
Driveline Cat 3
Gearbox horsepower 25 hp
Belt "B" section Kevlar®
Belt adjustment Spring-loaded idler
Blades (3) .25" x 2.5"
Blade sheave steel
Blade spindles/bearings 3 cast iron housings, greaseable ball bearings
Blade tip speed 16,200 fpm
Blade overlap 1"
Deck thickness 10 gauge
Deck side skirt 10 gauge 4.6" deep
Rear chain shielding optional
Front anti-scalp roller optional
Pneumatic caster wheels 3.5 x 4 x 10
