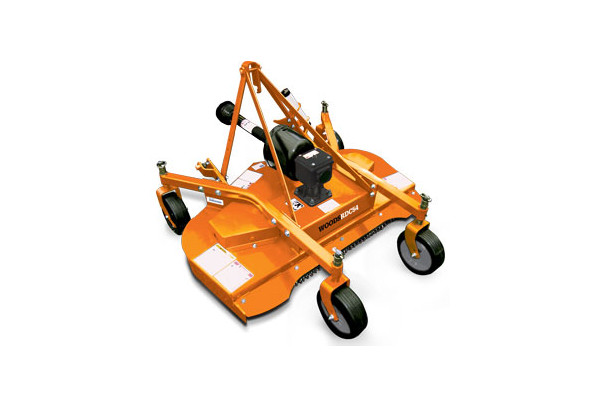

Woods RD72

Double tap to zoom



Features

  • 72-inch cutting width, Rear Discharge
  • Three-point hitch: Cat 1
  • Ideal for 20-35 horsepower compact tractors
  • 4.6-inch deck depth, along with baffling and rear discharge design for exceptional material distribution and a high-quality cut
  • Rounded front corners and tapered deck sides improve maneuverability and grass discharge
  • Spring loaded idler pulleys
  • ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups

Specifications

Cutting width 72"
Cutting height 1" - 4.5"
Overall width 73"
Overall length 66.04"
Weight 603 lbs
PTO Horsepower 20 - 35 hp
Tractor PTO speed 540 rpm
Hitch/Quick-hitch compatible Cat 1 / yes
Driveline Cat 3
Gearbox horsepower 35 hp
Belt "B" section Kevlar®
Belt adjustment Spring-loaded idler
Blades (3) .25" x 2.5"
Blade sheave steel
Blade spindles/bearings 3 cast iron housings, greaseable ball bearings
Blade tip speed 18,000 fpm
Blade overlap 1.5"
Deck thickness 8 gauge
Deck side skirt 8 gauge 4.6" deep
Rear chain shielding optional
Front anti-scalp roller optional
Pneumatic caster wheels 3.5 x 4 x 10
