Call UsWoods RD60

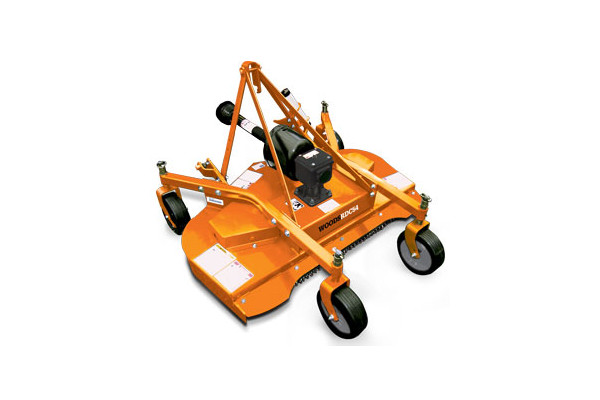

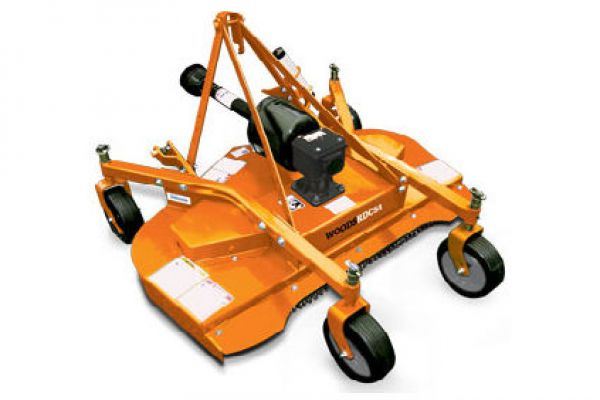

Rear Mount RD60
Overview:
For those who demand a professionally groomed lawn, Woods high-performance finish mowers ensure a clean, crisp, manicured appearance year after year. Our unique rounded front, tapered-side rear discharge deck allows you to mow with better maneuverability – reducing trim time and increasing productivity. Heat-treated, a... + Read More
Features
- 60-inch cutting width, Rear Discharge
- Three-point hitch: Cat 1
- Ideal for 15-35 horsepower compact tractors
- 4.6-inch deck depth, along with baffling and rear discharge design for exceptional material distribution and a high-quality cut
- Rounded front corners and tapered deck sides improve maneuverability and grass discharge
- Spring loaded idler pulleys
- ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups
Specifications
| Cutting width | 60" |
| Cutting height | 1" - 4.5" |
| Overall width | 61" |
| Overall length | 61.15" |
| Weight | 503 lbs |
| PTO Horsepower | 15 - 35 hp |
| Tractor PTO speed | 540 rpm |
| Hitch/Quick-hitch compatible | Limited Cat 1/yes |
| Driveline | Cat 3 |
| Gearbox horsepower | 35 hp |
| Belt | "B" section Kevlar® |
| Belt adjustment | Spring-loaded idler |
| Blades | (3) .25" x 2.5" |
| Blade sheave | Steel |
| Blade spindles/bearings | 3 cast iron housing, greaseable ball bearings |
| Blade tip speed | 18,030 fpm |
| Blade overlap | 1.5" |
| Deck thickness | 8 gauge |
| Deck side skirt | 8 gauge 4.6" deep |
| Rear chain shielding | optional |
| Front anti-scalp roller | optional |
| Pneumatic caster wheels | 3.5 x 4 x 10 |
