Specializing in farm equipment sales, parts, and service.

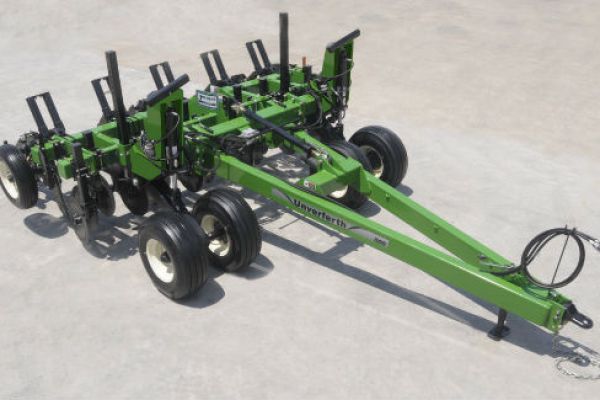

Unverferth 500

Double tap to zoom



Features

Choose from the model 300, 500 or 700 3pt. implement caddy.

  • The Model 300 fits up to a 6-shank Unverferth ripper or up to 9,000 lbs. of lift capacity
  • The Model 500 fits up to a 9-shank Unverferth ripper or up to 13,000 lbs. of lift capacity
  • The Model 700 lifts up to a 16-shank Unverferth ripper or up to 25,000 lbs. of lift capacity
  • Models 500 and 300 feature:
    • Pull-through design with a fully welded 4” x 8” tubular steel frame
    • 6”x 6” tubular steel axle arms for enhanced durability
    • Dual wheels with 12.5 x 15 tires for greater flotation and transport stability
    • More than 34 inches of vertical-lift travel for transport clearance
    • Cat. 3 lower quick hitch with auto-latch; top quick link standard on model 500 and optional on 300
  • Model 700 features:
    • Parallel axle lift arms for level, uniform lifting with up to 30" of clearance
    • Oscillating dual wheels for enhanced transport stability
    • Pull-through design with a fully welded 4” x 10” tubular steel frame
    • Rear-mounted hydraulics for easily supplying the tillage tool
    • Available with Cat. 4 narrow hitch attachment
  • All models feature:
    • Adjustable top quick-link for easily leveling the implement
    • Adjustable tongue height with combination clevis or single-tang hitch for easily matching your tractor
    • Standard transport chain

Specifications

MODEL 500
Dual Tire Size 12.5L x 15 F-Range
Fits Machine Up to 9 shanks
Lift Capacity 13,000 lbs.
Width 10'6"
Length 13'6"
