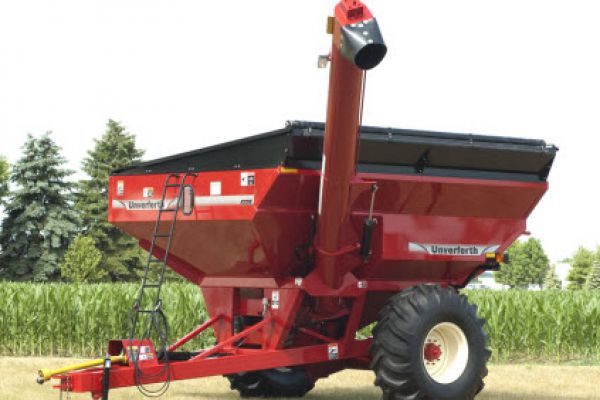

Unverferth 5225 for sale at Coastal Tractor, California

Double tap to zoom

Unverferth 5225 for sale at Coastal Tractor, California




Auger Standard Features

  • Single, corner-auger with a side-folding design increases the upper auger length for greater side reach and height.

  • The 14" diameter auger provides unloading speeds up to 300 bushels per minute.
  • 5/16" thick flighting provides long-term, trouble-free operation.
  • Spout-mounted LED unloading light for easy night time operation.
  • Exclusive, single-point auger connection ensures the upper and lower augers are aligned for a smooth and efficient transfer of grain between the upper and lower auger.
  • Electronic balancing of the upper and lower auger sections virtually eliminates vibration for long-term life.
  • The cushioned auger fold cylinder gently folds and unfolds the upper auger into the loading and transport position.
  • When in the unload position, the hydraulic locking mechanism holds the upper and lower augers tightly together for a leak-free seal.



Tank Standard Features

  • Models 6225 and 5225 feature tank capacities of 650 and 550 bushels to meet smaller acreage or field requirements.
  • Tank features an exclusive deep sump design, which funnels grain down into the auger for fast and complete unloading.
  • Steep 36° front and rear tank slopes and a graphite coated interior ensures complete cleanout and faster unloading speeds regardless of grain moisture.
  • Hydraulically operated flow gate features a highly visible position indicator for easily controlling grain flow while unloading.
  • Conveniently located lever-operated gravity unloading door located on the auger sump permits easy cleanout.
  • Exclusive manufacturing process crimps side panels for added strength and exposed seams are silicone sealed for corrosion resistance.
  • Durable, high-grade enamel paint is baked on in tractor red or green for a long-lasting and smooth, automotive-like finish.
  • Front viewing ladder and front and rear shatterproof windows allow the operator to easily monitor tank contents.
  • Standard transport chain, D.O.T. approved flashing LED taillights, side marker lights, reflective markings and SMV emblem for safer road transport.
  • Color-coded and labeled hydraulic hoses with storage holder for added organization and convenience.
  • Grating over the auger intake prevents debris and foreign objects from entering the auger.



Undercarriage & Driveline Standard Features

  • Single-tang hitch is standard on model 6225 and a clevis hitch is standard on model 5225 for easy hookup and worry free towing.
  • Single wheel and tire axles feature 10-bolt hubs with gusseted reinforcements and 3 1/4" special alloy, high-tensile spindles on model 6225 and 2 7/8” spindles on model 5225.
  • Exclusively designed, heavy-duty 45° gearbox features a 1 3/4" output shaft for trouble-free operation.
  • Heavy-duty side-wind jack is easy to operate for convenient tractor hookup.
  • Single wheels and tires with a rigid axle and a variety of tire sizes available depending on model.


Model Number 5225

U.S. patent #5,374,082

*Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight)

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

Capacity*(bushels) 500
Auger Size 14"
Flighting Thickness 5/16"
Output Shaft Dia. 1-3/4"
Appr. Empty Weight (lbs) 6,100
Est. Loaded Tongue Wt. (lbs) 3.200
Unload Time (bu/min) 350
Auger Reach 7'3"
Tractor H.P. Req. 130+
Tire Size 20.8x38
Unverferth Grain Cart Specifications A 13'9"
B 7'3"
C 13'9"
D 19'5"
E 13'2"
F 7'3"
G 11'
H 9'8"
I 1'6"
J 10'
K 11'9"
L 12'
M 11'10"
Loaded Tire Ground Pressure - P.S.I. Specifications calculated at the 3" penetration level.
30.5x32 13.71
24.5x32 16.51
23.1x26 18.39

Accessories and Attachments

  • Model 410 scale package features:
    • Scale display specifically designed for ease of use with the start/stop button.
    • Assign, view and change six character field information and accumulate weights within a field.
    • Optional printer is required for record keeping.
  • Remote scale display for the 410 scale indicator features a 4" x 18" LED screen that can be mounted to the side of the grain cart for easy viewing of the loaded weight of the grain cart
  • Weatherguard roll-tarp features:
    • Custom-designed with heavy-duty, 18 oz. black canvas for long life.
    • Semi trailer locking design for optimum protection from high wind and moisture.
    • Low-profile tarp bows are reinforced to eliminate sagging.
  • 2-way directional downspoutprovides in-and-out control for easily topping off trucks.
  • Hydraulic drive features:
    • Tongue-mounted for easy installation - the grain cart can still be operated with a PTO if desired.
    • 55 gallon per minute provides up to 300 bushel per minute unloading speeds and requires 2 sets of hydraulic ports.
