Specializing in farm equipment sales, parts, and service.

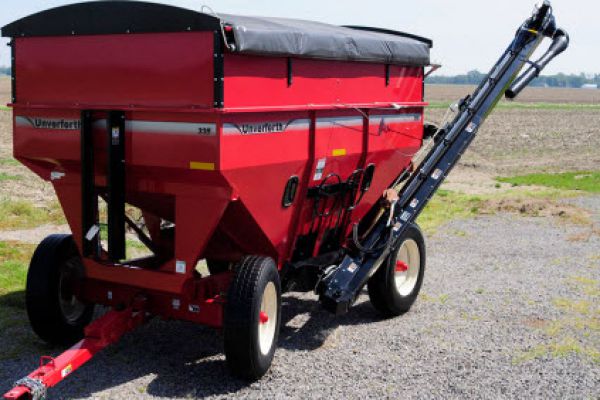

Unverferth Box Mounted

Double tap to zoom



Features

  • Universal mounting bracket allows for matching the Unverferth gravity box conveyor to all gravity boxes with door widths ranging from 29 1/2" to 60".
  • The deep-intake sump keeps the conveyor full for optimum speed
  • The easily accessible cleanout door simplifies conveyor cleanup for maintaining varietal and hybrid separation
  • The  high-efficiency orbital motor is mounted near the top of the conveyor for a cleaner operating environment, longer seal life and greater under-hopper clearance
  • Speed is easily adjustable from 0-500 rpm
  • The 16-foot conveyor length and 3-stage telescopic downspout, that extends from 6 to 10 feet, optimizes filling reach and operator convenience
  • An optional electronic on/off kit provides easy use while filling the planter and features magnetic mount for easy access and storage
  • The tube-mounted friction disc winch provides easy vertical adjustment
  • The Unverferth gravity box conveyor tucks securely to the side of the gravity box when not in use for enhanced transport safety and storage space efficiency
  • Box-mountable hydrualic power unit for self-contained use without a tractor and features:
    • Produces 6.5 GPM flow at 2900 p.s.i. of hydraulic flow to easily power your auger
    • 8 (240CC) horsepower Honda engine with electric start and pull-start backup
    • 4.5 gallon reservoir with adjustable relief valve along with combination level indicator/temperature gauge
    • Reservoir features in-line return filter and intake strainer to keep hydraulic system clean
    • Available mounting bracket for universal mounting to gravity boxes

Specifications

Sorry, currently there are no specs but check back with us later.
