Call UsRhino 484
400 Series (Super Duty) 484
Overview:

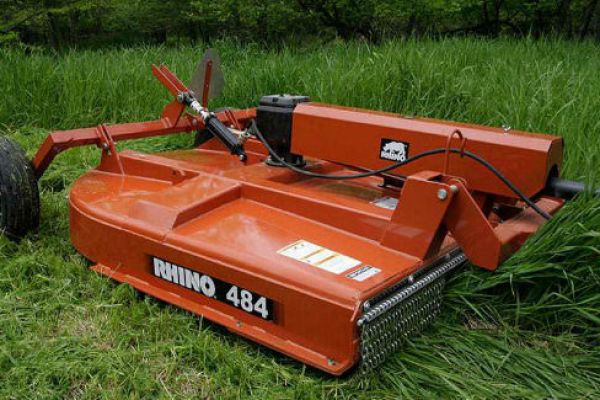

Rhino's 400 Series Rotary Cutter is built for tough jobs. A 4 1/2" diameter cut capacity and deep reinforced domed deck design handle higher volumes of cut material easily. The 210 HP gearbox rating with 5-year limited warranty and durable full-length and width-deck bracing ensures a long life. The streamlined bracing ... + Read More
Features
- Domed deck design
- Rigid deck bracing
- 4-1/2" cut capacity
- Deep deck for material flow
- ½" impact zone
- Cross-braced blade pan
- ¼ side skirts
Specifications
| Model | 484 |
| Cutting Width | 84'' |
| Overall Width | 90 1/2'' |
| Overall Length | 138 1/2'' Lift 154 1/2'' Pull |
| Min Cutting Height | 1 1/2'' |
| Hitch* | CAT 2 & 3 / Cat 1, 2 & 3 QH |
| Blade Carrier | Reinforced Pan |
| Blades | 1/2'' x 4'' Updraft |
| Min PTO Horsepower Required** | 60 Lift 50 Pull |
| Gearbox Rating*** | 210 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2 3/8'' |
| PTO Type | 540 RPM |
| Blade Tip Speed (FPM) | 15,675 |
| Cutting Capacity (Max.) | 4 1/2'' |
| Driveline Size | CAT 5 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 7 Ga. (3/16'') |
| Side Skirt | 1/4'' X 11'' |
| Tires & Wheels | Optional |
| Safety Deflector | Deflectors or chains |
| Weight (Approx.) | 1,823 lbs. |
