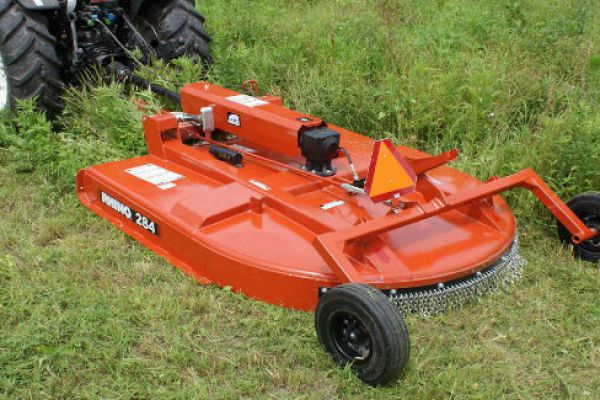

Call UsRhino 284
200 Series (Heavy Duty) 284
Overview:
The 200 Series handles a wide range of cutting applications with its 2 1/2" diameter material cut capacity and high blade tip speeds. The unobstructed underside deck allows excellent material flow through the cutting chamber which lowers power requirements. The cross-braced round pan blade carrier provides overlapping ... + Read More
Features
- Domed deck design
- 2-1/2” cutting capacity
- Cross-braced blade pan
- Deep deck design for maximum material flow
- Quick hitch compatible
Specifications
| Model | 284 |
| Cutting Width | 84'' |
| Overall Width | 90 1/2'' |
| Overall Length | 138 1/2'' Lift 154 1/2'' Pull |
| Min Cutting Height | 1 1/2'' |
| Hitch* | CAT 2 & 3 / Cat 1, 2 & 3 QH |
| Blade Carrier | Reinforced Pan |
| Blades | 1/2'' x 4'' Updraft |
| Min PTO Horsepower Required** | 60 Lift 45 Pull |
| Gearbox Rating*** | 130 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2'' |
| PTO Type | 540 RPM |
| Blade Tip Speed (FPM) | 16,328 |
| Cutting Capacity (Max.) | 2 1/2'' |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga. |
| Side Skirt | 1/4'' X 11'' |
| Tires & Wheels | Optional |
| Safety Deflector | Deflectors or chains |
| Weight (Approx.) | 1,265 lbs. Lift / 1,427 lbs. Pull |
