Turbo Series (Super Duty) TR96
Overview:

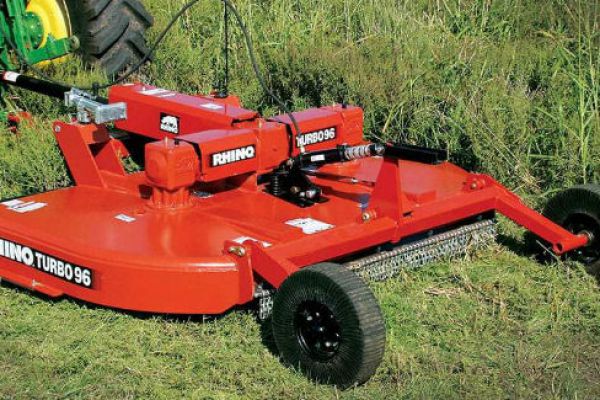

The super-duty Rhino® Turbo 96 and Turbo 120 are 8' and 10' rotary cutters designed for use in demanding agricultural, commercial and industrial mowing applications. They set the standard for premium design and performance in multi-spindle rotary cutters. Features include the patented Turbo Dome™ double deck where both... + Read More
Features
- Double-Layered Deck for Optimal Durability and Easy Clean-Off
- Smooth Obstruction Free Underside of Deck
- Deep Deck for Larger Volume of Material
- Cross-Braced Blade Pan Carrier
Specifications
| Model | TR96 |
| Cutting Width | 97'' |
| Overall Width | 104'' |
| Overall Length | 101'' - Lift, Semi-Mount 136'' - Pull |
| Cutting Height | 1 1/2''-12'' |
| Height Adjustment | Ratchet Jack - Lift Cylinder - Semi-Mount, Pull |
| Jack Stand | Std - Pull |
| Hitch | CAT 2, CAT 2 & 3 QH Semi-Mount, Pull |
| Amount of Offset - Semi-Mt Hitch | 11'' R or L |
| Blade Carrier | Reinforced Pan |
| Blades | 1/2'' x 3 1/2'' Updraft |
| Blade OverLap | 4'' |
| HP Required (Min.) | 55 - Lift 30 - Semi-Mount, Pull |
| Gearbox Rating - Center | 120 HP |
| Gearbox Rating - Outboard | 110 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2'' |
| Blade Tip Speed - 540 RPM | 17,004 FPM |
| Blade Tip Speed - 1000 RPM | 16,821 FPM |
| Axle Protection - Pull Type | Spring Shock Absorber |
| Cutting Capacity (Max) | 2'' |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga (Upper & Lower) |
| Side Skirt | 1/4'' x 10'' |
| Tires & Wheels | See Note |
| Safety Tow Chain | Std - Pull |
