Apply NowRhino TW144

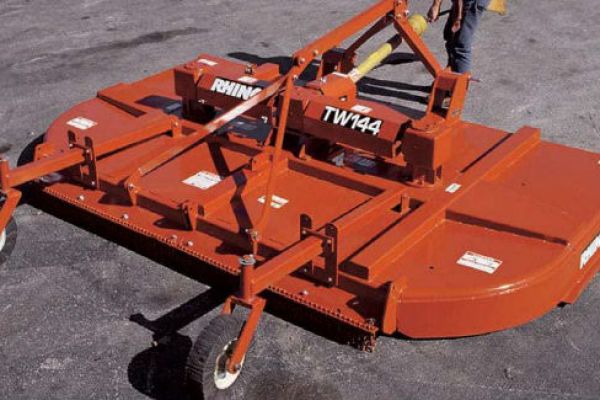

TW Series (Heavy Duty) TW144
The TW144 cuts a full 144" swath. The 120 HP center gearbox transfers power to the 100 HP outboard gearboxes. The pull-type unit requires a 55 HP tractor (min.) and the lift-type unit requires a 70 HP (min.) tractor (with adequate front weights).
Features
- Slip-Clutch Protection
- Torque Dampeners
- CAT IV Driveline
- 10 Gauge Deck
- 1/4" Side Skirts
- CAT 2 & 3 Quick Hitch, Pull-Type
Specs
| Model | TW144 |
| Cutting Width | 144'' |
| Overall Width | 151'' |
| Overall Length | 130'' Lift 168'' Pull |
| Cutting Height | 2'' - 12'' |
| Height Adjustment | Ratchet Jack - Lift Hydraulic Cylinder - Pull |
| Jack Stand | Standard - Pull |
| Hitch | Cat 2 & 3 QH, Pull |
| Blade Carrier | Pan |
| Blades | 1/2'' x 4'' Updraft |
| Blade OverLap | 4'' |
| HP Required (Min.) | 70 Lift 55 Pull |
| Gearbox Rating - Center | 120 HP |
| Gearbox Rating - Outboard | 100 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2 3/8'' |
| Blade Tip Speed - 540 RPM | 15,523 FPM |
| Blade Tip Speed - 1000 RPM | 15,839 FPM |
| Axle Protection | Spring Shock Absorber - Pull |
| Cutting Capacity (Max) | 2'' |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga |
| Side Skirt | 1/4'' x 10'' |
| Tires & Wheels | See Note |
| Safety Tow Chain | Std - Pull |
| Light Kit | Std |
| Weight (Approx) | 2177 Lbs |
